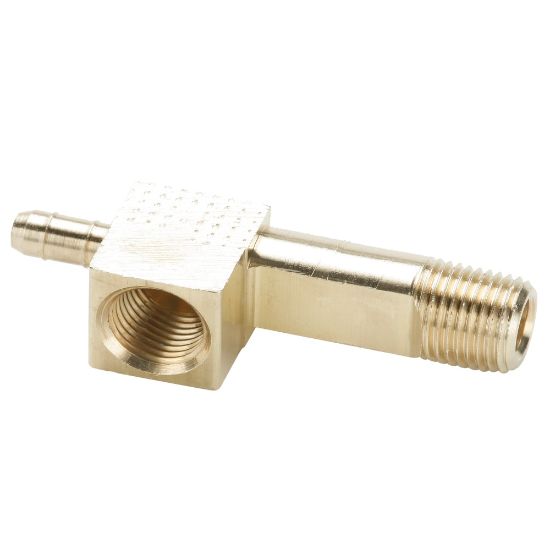

228-4-2 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Name: 228-4-2 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
SKU: 228-4-2
Price: 19.48 USD
Availability: InStock

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:

36 in stock

Springfield, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 228-4-2

$19.48/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Barb
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Pipe
Connection 2 Style	Male Pipe	Connection 3 Thread Size (inch)	1/8
Shape	Gauge Tee	Connection 3 Style	Male Pipe
Body Material	Brass	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-65 °F	Tube Material	Polyethylene
Maximum Operating Temperature	32 °C
