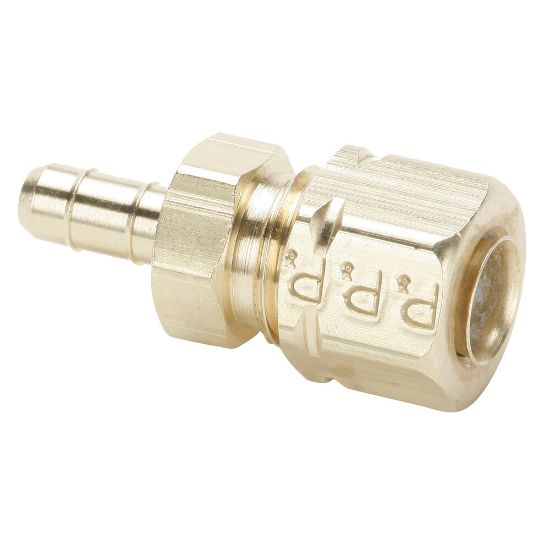

22CA-4-4 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Name: 22CA-4-4 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
SKU: 22CA-4-4
Price: 7.02 USD
Availability: InStock

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:

30 in stock

Kansas City, KS

Partner Available:

63 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 22CA-4-4

$7.02/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Connection 1 Style	Barb	Connection 2 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Shape	Union	Style	Tube to Compression
Body Material	Brass	Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-53 °C	Dimensional Weight	0.05518884892086331 lb
Tube Material	Polyethylene	Maximum Operating Temperature	90 °F
