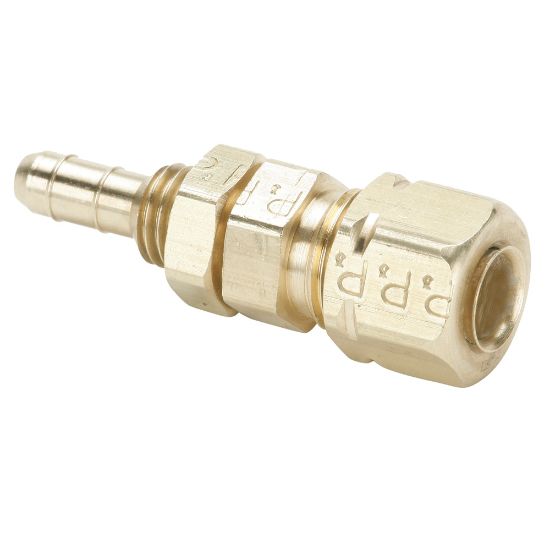

Picture of Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb - 22CABH-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb - 22CABH-4-4

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.
Availability:
4 in stock
Kansas City, KS4
SKU 22CABH-4-4
$11.64
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 3 Stylena
Connection 3 Thread Size (inch)naShapeBulkhead
Connection 2 Thread Size (inch)naConnection 1 StyleBarb
Connection 2 StyleCompressionConnection 1 Tube O.D. (inch)1/4
Connection 2 Tube O.D. (inch)1/4StyleTube to Compression
DivisionFluid System Connectors DivisionBody MaterialBrass
Maximum Operating Pressure10 barMinimum Operating Temperature-53 °C
Dimensional Weight0.11037769784172662 lbTube MaterialPolyethylene
Maximum Operating Temperature90 °FApplicationIndustrial Controls
