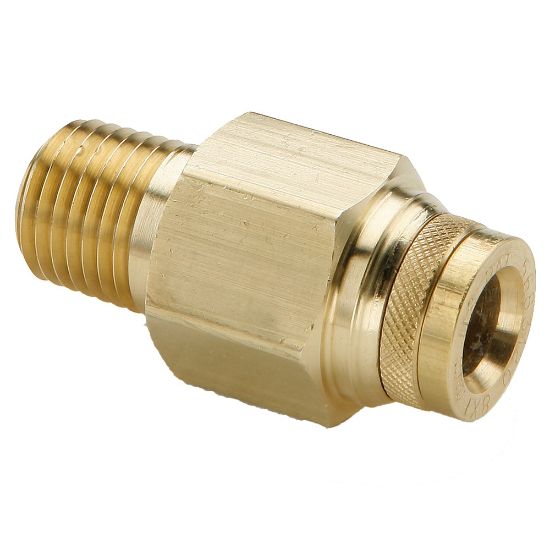

Brass Prestomatic Push to Connect DOT Fittings - F2PMTB10-1/4

Name: Brass Prestomatic Push to Connect DOT Fittings - F2PMTB10-1/4
SKU: F2PMTB10-1/4

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:

Backordered

SKU F2PMTB10-1/4

$97.48

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Size	10 mm	Connection 1 Type	Push-to-Connect
Product Style	Tube to Pipe	Connection 2 Type	Male Pipe Thread
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 2 Size	1/4 inch	Brand	PARKER
Division	Fluid System Connectors Division	Minimum Operating Temperature	-40 °F
Body Material	Brass	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Connection 2 Size	n/a	Maximum Operating Pressure	250 psi
Maximum Operating Temperature	200 °F	Connection 1 Size	n/a
Connection 1 Type	Push-to-Connect	Tube Material	Stainless Steel
Connection 3 Size	N/A	Shape	Connector
Configuration	Tube to Pipe	Seal Material	Buna N (O-Ring)
Application	Accessories	Specifications Met	DIN 74324
Materials of Construction	Brass (Collet)
