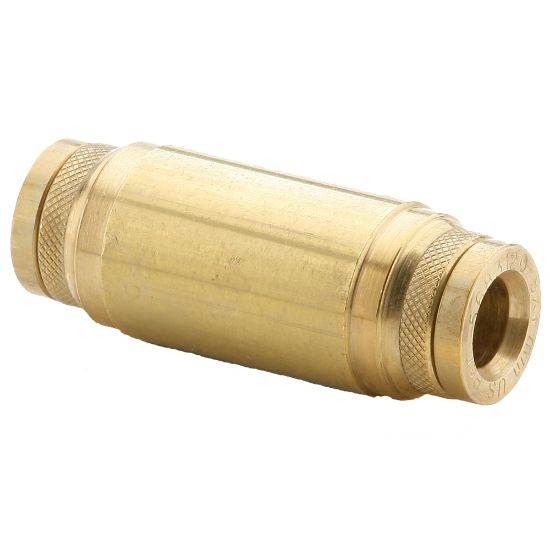

HPMTB10 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	5 in stock

SKU HPMTB10

$83.65/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	10 mm
Connection 2 Size	10 mm	Connection 1 Type	Push-to-Connect
Product Style	Tube to Tube	Connection 2 Type	Push-to-Connect
Shape	Union	Connection 3 Size	N/A
Connection 3 Type	N/A	Minimum Operating Temperature	-40 °C
Body Material	Brass	Maximum Operating Pressure	17 bar
Maximum Operating Temperature	200 °F	Connection 1 Size	10 mm Tube O.D.
Connection 1 Type	Push-to-Connect	Connection 2 Size	10 mm Tube O.D.
Connection 2 Type	Push-to-Connect	Tube Material	Stainless Steel
Connection 3 Size	N/A	Configuration	Tube to Tube
Seal Material	Buna N (O-Ring)	Specifications Met	DIN 74324
Materials of Construction	Brass (Collet)	Shape	Union
