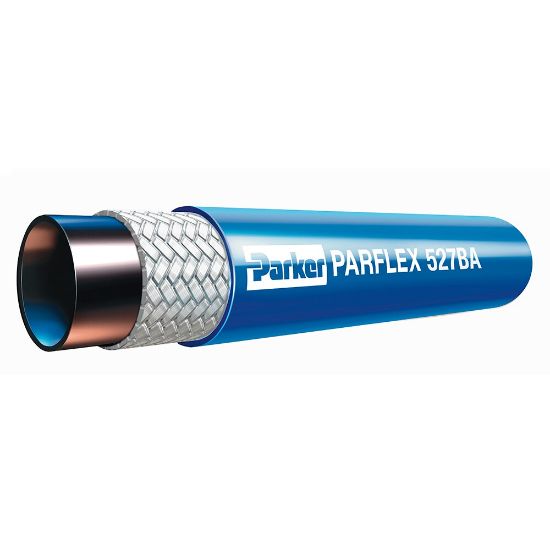

527BA-3 - Breathing Air Refill Hose - 527BA

Name: 527BA-3 - Breathing Air Refill Hose - 527BA
SKU: 527BA-3
Price: 9.13 USD
Availability: InStock

Parkers’ Breathing Air Refill Hose is a 7,000 psi working pressure hose. It complies with CGA G7.1-1 Grade E Breathing Air Standards and NFPA 1901 requirements for Fire Apparatus.

Availability:

20 in stock

Wichita, KS	14
TOPEKA, KS	6

Partner Available:

1658 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 527BA-3

$9.13/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Compatible Fitting	CG Series	Media	Air
Maximum Operating Temperature	82 °C	Hose Reinforcement Material	Fiber
Weight	0.05 lb/ft	Specifications Met	CGA G7.1, Grade E (Breathing Air Standards)
Inside Diameter	3/16 inch	Minimum Operating Temperature	-40 °C
Design Factor	4:1	Maximum Operating Pressure	7000 psi
Outside Diameter	10.9 mm	Hose Inner Tube Material	Polyamide (PA)
Minimum Bend Radius	1-1/2 inch	Cover Material	Polyurethane
