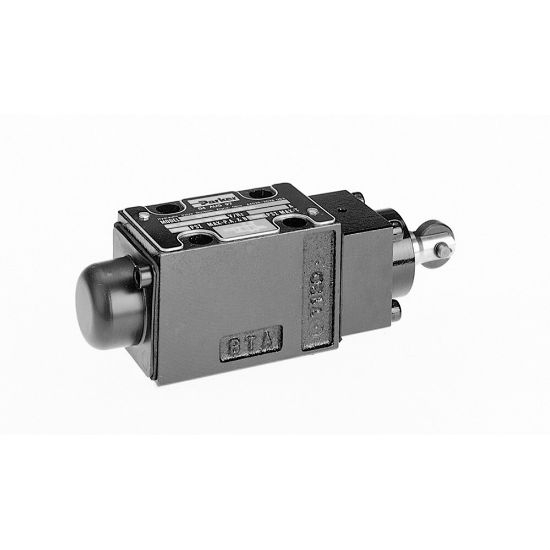

D1VC001BV - Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series

Parker’s D1VC, D1VD and D1VG directional control valves are high performance, 4-chamber, direct operated, cam controlled, 4-way valves.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D1VC001BV

$745.08/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	22 GPM
Maximum Operating Pressure	3000 PSI	Mounting Type	Subplate
Actuation Type	Cam (90° to mounting surface)	Size	NFPA3; CETOP 3; NG9
Size	NFPA3	Spool Code	All Ports Blocked
Spool Position	Spring Offset Operator at "A" port end	Maximum Operating Pressure	5000 psi
Valve Type	Industrial Cam Operated Directional Control Valve	Maximum Flow Rate	22.0 Gal/min
Seal Material	Fluorocarbon	Mounting Type	Manifold
Maximum Operating Temperature	140 °F	Weight	3.2 lb
Body Material	Steel	Actuation Type	Cam (90° to mounting surface)
