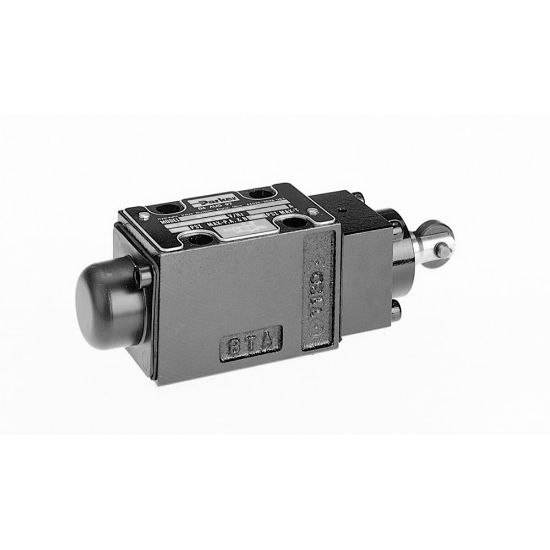

Picture of Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series - D1VC002BV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series - D1VC002BV

Parker’s D1VC, D1VD and D1VG directional control valves are high performance, 4-chamber, direct operated, cam controlled, 4-way valves.
Availability:
Backordered
SKU D1VC002BV
$745.08
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Flow Rate22 GPM
Maximum Operating Pressure3000 PSIMounting TypeSubplate
Actuation TypeCam (90° to mounting surface)SizeNFPA3; CETOP 3; NG21
Weight1.44 kgValve TypeIndustrial Cam Operated Directional Control Valve
Seal MaterialFluorocarbonMaximum Flow Rate22.0 Gal/min
Spool CodeAll Ports OpenMounting TypeManifold
Spool Position2-PositionMaximum Operating Pressure345 bar
Maximum Operating Temperature140 °FDivisionHydraulic Valve Systems Division
SizeCETOP 3Body MaterialSteel
Actuation TypeCam (90° to mounting surface)
