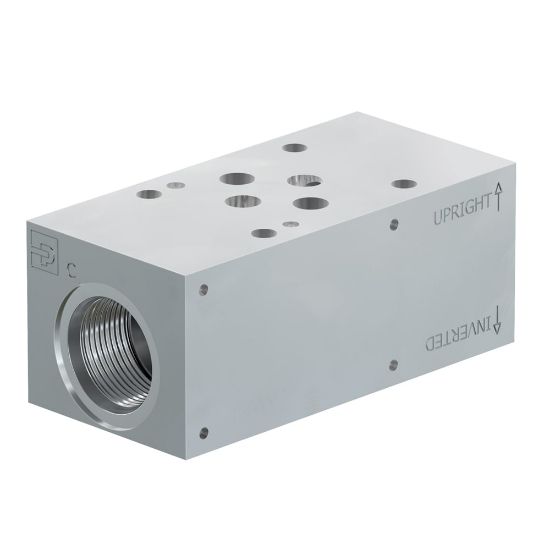

Picture of Cartpak Bodies - BD03-ABN-A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cartpak Bodies - BD03-ABN-A

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.
Availability:
Backordered
SKU BD03-ABN-A
$153.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAType/ConfigurationA and B Port Interrupt
Body MaterialAluminumSeal MaterialNitrile
Maximum Flow Raten/aMinimum Operating Temperature-34 °C
Operating Temperature-34 to 121 °CMaximum Operating Pressure3000 psi
Weight0.34 kgFor Fluid TypeSynthetic Hydraulic Fluids
ConfigurationA and B Port InterruptNumber of Cavities2
DivisionHydraulic Cartridge Systems DivisionFlow Raten/a
Seal MaterialNitrileActuation Typen/a
Cavity SizeC10-2Body MaterialAluminum
Maximum Operating Temperature121 °CDivisionHydraulic Systems Division
Product resources

Literature and Reference Materials
