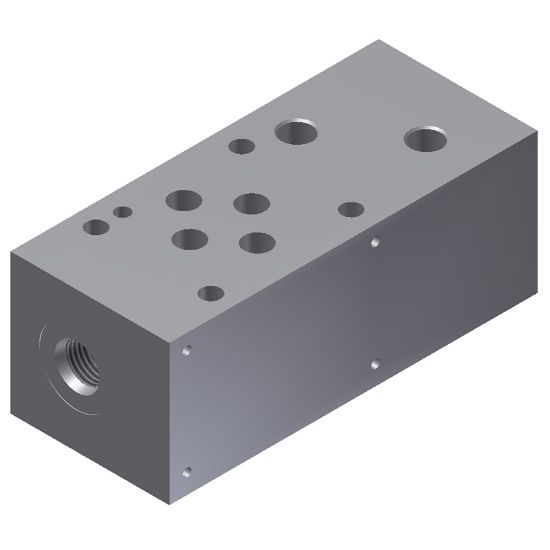

Picture of Cartpak Bodies - BD03-BDA-A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cartpak Bodies - BD03-BDA-A

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.
Availability:
Backordered
SKU BD03-BDA-A
$198.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialAluminum
Seal MaterialNitrileType/ConfigurationB Port Drain to A
Operating Temperature-30 to 250 °FDivisionHydraulic Cartridge Systems Division
Seal MaterialNitrileFlow Raten/a
Actuation Typen/aBody MaterialAluminum
Number of Cavities1DivisionHydraulic Systems Division
For Fluid TypeMineral-based Hydraulic FluidsMaximum Operating Temperature121 °C
Cavity SizeC10-3Maximum Flow Raten/a
Minimum Operating Temperature-34 °CMaximum Operating Pressure3000 psi
Weight0.75 lbConfigurationB Port Drain to A
