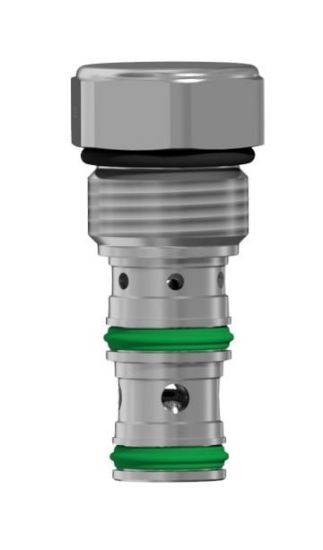

CSH101B - Cartridge Ball Type Shuttle Valve

Name: CSH101B - Cartridge Ball Type Shuttle Valve
SKU: CSH101B
Price: 35.02 USD
Availability: LimitedAvailability

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Availability:

2 Limited Stock

Wichita, KS

Partner Available:

13 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CSH101B

$35.02/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	10 GAL/MIN, 38 L/MIN
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	Maximum Operating Pressure	5000 psi
Flow Rate	38 L/min	For Fluid Type	Mineral-based Hydraulic Fluids
Weight	0.14 kg	Valve Material	Hardened Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Actuation Type	Pressure Sensing
Operation Type	Automatic	Leak Rate	10
Maximum Inlet Pressure Rating	5000 psi	Cavity Size	C10-3
Maximum Flow Rate	10 Gal/min	Installation Torque	65 Nm
Function	Diverter	Configuration	3-Way Ball Type
Standard Flow Rate Setting	n/a
