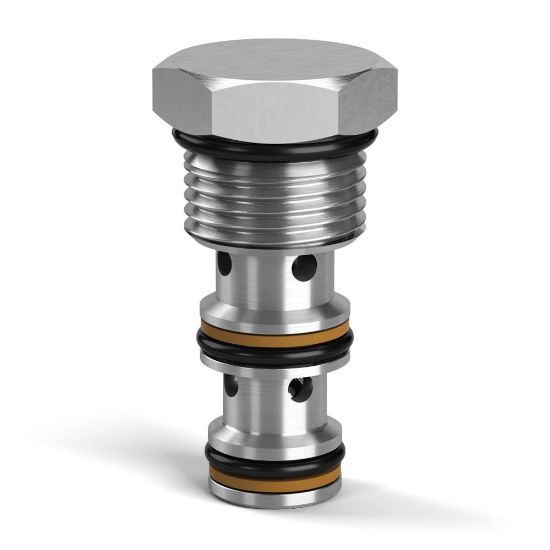

Cartridge Ball Type Shuttle Valve - K02A3N

Name: Cartridge Ball Type Shuttle Valve - K02A3N
SKU: K02A3N

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).

Availability:

Backordered

SKU K02A3N

$105.28

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	13 GAL/MIN, 50 L/MIN
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	6000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Installation Torque	30 lb-ft
Maximum Inlet Pressure Rating	420 bar	Cavity Size	C08-3
Flow Rate	13 Gal/min	Maximum Flow Rate	13 Gal/min
Weight	0.15 lb	Function	Diverter
Configuration	3-Way Ball Type	Maximum Operating Temperature	+121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Leak Rate	10 @ 5000 PSI (350 BAR) drops/min	Standard Flow Rate Setting	7 Gal/min
