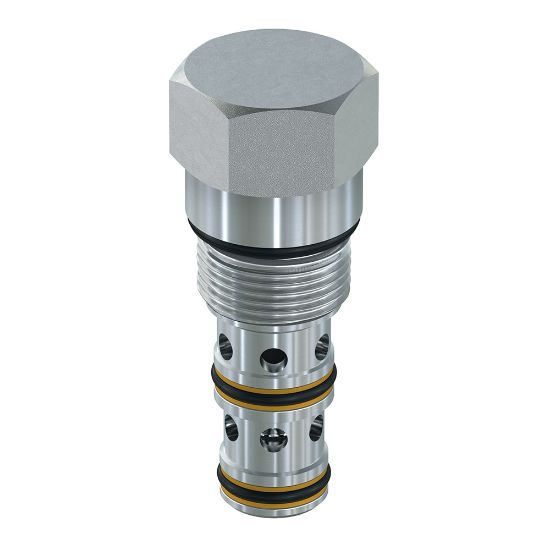

K04D3N - Cartridge Spool Type Shuttle Valve

REGIONAL - Parker's 2-position, 3-way spool type shuttle valves will fit industry common cavities while providing superior performance; capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU K04D3N

$202.10/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	24 GAL/MIN, 90 L/MIN	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Weight	0.14 kg	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Actuation Type	Pressure Sensing
Operation Type	Automatic	Maximum Inlet Pressure Rating	420 bar
Installation Torque	50 Nm	Function	Shuttle
Cavity Size	C10-3	Maximum Operating Temperature	+121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate	24 Gal/min
Maximum Flow Rate	90 L/min	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Configuration	3-way Spool Type	Standard Flow Rate Setting	13 Gal/min
