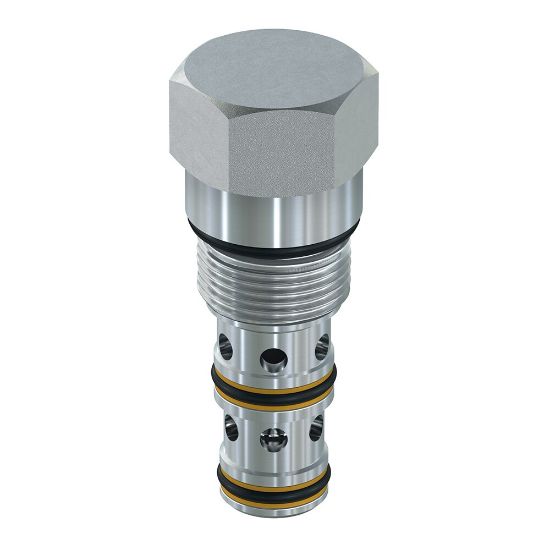

K04B3-5.0N - Cartridge Spool Type Shuttle Valve with Spring Offset

REGIONAL - Parker's 2-position, 3-way spool type shuttle valve with spring offset are spring biased into its normal position and are capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU K04B3-5.0N

$230.77/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	25 GAL/MIN, 90 L/MIN	Switching Pressure	73 PSI, 5 BAR
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	6000 psi	Weight	0.14 kg
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Actuation Type	Pressure Sensing	Maximum Inlet Pressure Rating	420 bar
Installation Torque	50 Nm	Function	Shuttle
Cavity Size	C10-3	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate	90 L/min
Maximum Flow Rate	24 Gal/min	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Configuration	3-way Spool Type	Operation Type	Spring Offset
Standard Flow Rate Setting	13 Gal/min	Switching Pressure	73 psi
