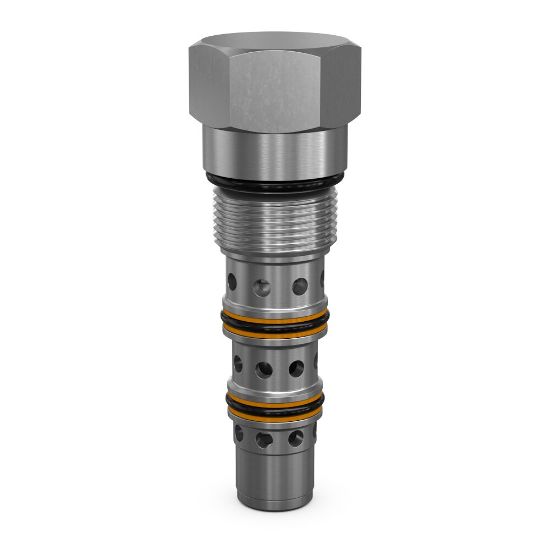

K04C3-10.0N - Cartridge Spool Type Shuttle Valves with All Ports Closed

REGIONAL - Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	5 in stock

SKU K04C3-10.0N

$195.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	26 GAL/MIN, 100 L/MIN	Switching Pressure	145 PSI, 10 BAR
Seal Material	Nitrile	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Weight	0.17 kg	Maximum Operating Pressure	420 bar
Actuation Type	Pressure Sensing	Maximum Inlet Pressure Rating	6000 psi
Flow Rate	26 Gal/min	Maximum Flow Rate	100 L/min
Installation Torque	37 lb-ft	Function	Shuttle
Cavity Size	C10-4	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Leak Rate	100 @ 1450 PSI (100 BAR) cm3/min
Configuration	3-way Spool Type	Operation Type	Spring Centered, All Parts Closed
Standard Flow Rate Setting	55 L/min	Switching Pressure	145 psi
