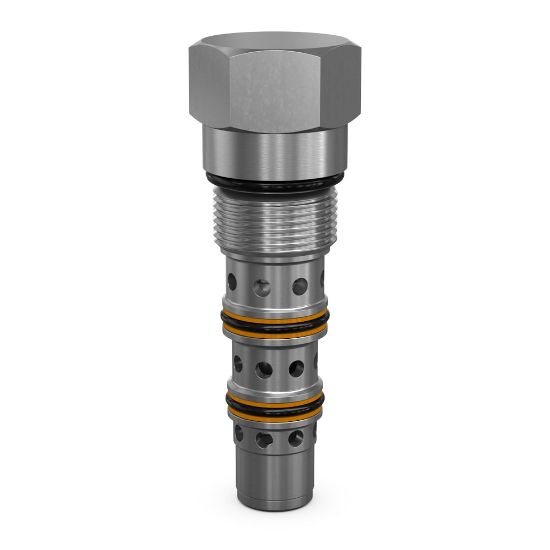

K04F3-10.0N - Cartridge Spool Type Shuttle Valves with All Ports Open

REGIONAL - Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU K04F3-10.0N

$237.82/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	26 GAL/MIN, 100 L/MIN	Switching Pressure	145 PSI, 10 BAR
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	6000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	0.17 kg
Actuation Type	Pressure Sensing	Maximum Inlet Pressure Rating	420 bar
Flow Rate	100 L/min	Leak Rate	n/a
Maximum Flow Rate	100 L/min	Installation Torque	50 Nm
Function	Shuttle	Cavity Size	C10-4
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Configuration	3-way Spool Type	Operation Type	Spring Centered, All Parts Open
Standard Flow Rate Setting	55 L/min	Switching Pressure	145 psi
