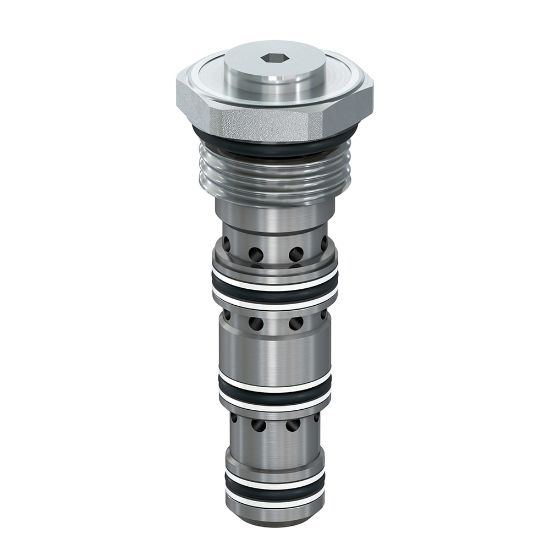

CPD084P - Cartridge Style Dual Pilot Operated Check Valves

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow ranging up to 19 lpm (5 gpm) and pressure up to 207 bar (3,000 psi) after pilot pressure is supplied.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	112 in stock

SKU CPD084P

$118.39/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	5 GAL/MIN, 19 L/MIN	Maximum Operating Pressure	207 bar
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Weight	0.05 kg
Body Material	n/a	For Fluid Type	Mineral-based Hydraulic Fluids
Leak Rate	5	Operation Type	Pilot Operated
Valve Material	Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Temperature	121 °C	Actuation Type	Pilot
Flow Rate	5 Gal/min	Mounting Type	Screw-in Cartridge
Maximum Inlet Pressure Rating	3000 psi	Cracking Pressure	n/a
Cavity Size	C08-4	Pilot Pressure Ratio	3:1
Function	Dual Pilot Operated	Maximum Flow Rate	19 Gal/min
Flow Direction	2-1 Free Flow	Installation Torque	15 lb-ft
Configuration	Cartridge Style
