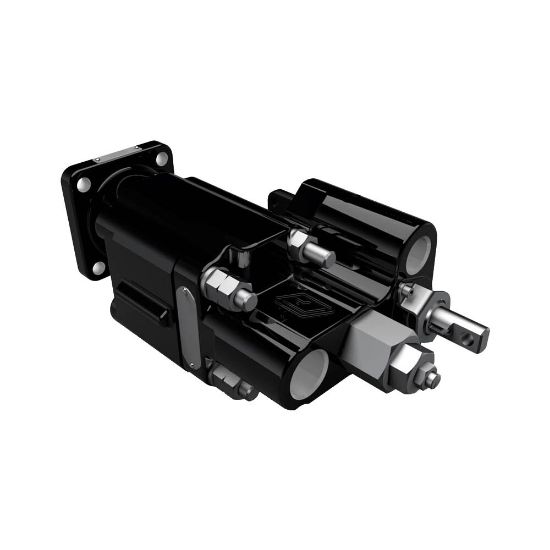

3149310226 - Cast Iron Pumps – C101/C102 Series

Parker’s C101/C102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 27.7 gpm.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	20 in stock

SKU 3149310226

$1,160.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	BI
Additional Options	No Air Shift	Displacement	6.38 cu. in. / 104.5 cc
Configuration	4-BOLT SQUARE	Pressure Rating (psi)	2500 PSI
Filter Included	No	Port Connection	NPT
Flow Rate	n/a	Minimum Fluid Temperature	0 °F
Additional Options	n/a	Media	n/a
Port Type	Tapered Thread	Pump Type	Fixed
Shaft Type	SAE	Sensor Type	n/a
Circuit Path	Open	Drain Option	No
Body Material	Cast Iron	Configuration	Single
Port Location	Rear Ports	Seal Material	TEFLON
Control Method	n/a	For Fluid Type	Standard Hydraulic Fluids
Shaft Diameter	1 inch	Maximum Flow Rate	n/a
Operating Pressure	up to 2500 psi	Maximum Noise Level	n/a
Charge Pump Included	No	Radial Load Capacity	n/a
Direction of Rotation	Clockwise	Inlet Connection Size	NPT
Thru-Drive Capability	No	Maximum Operating Speed	2400 RPM
Maximum Fluid Temperature	80 °C	Energy Recovery Capability	No
Maximum Operating Pressure	172 bar	Maximum Kinematic Viscosity	7500 SUS
Minimum Kinematic Viscosity	50 SUS	Weight	32 kg (Max)
Displacement	up to 105 cm3/rev	Maximum Displacement	6.4 inch3/rev
Outlet Connection Size	NPT 1 inch (Cylinder)
