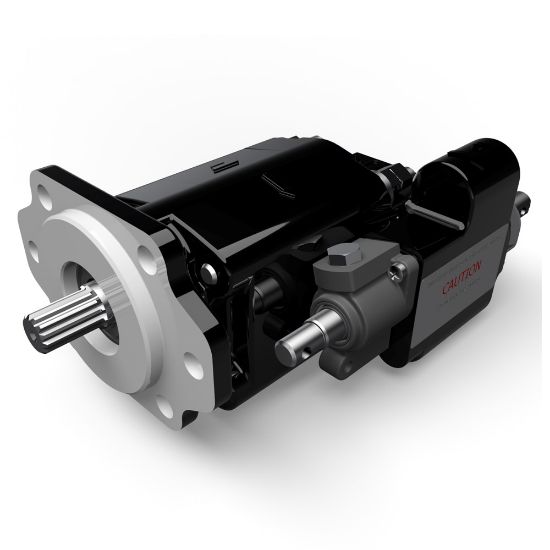

3089310047 - Cast Iron Pumps – G101/G102 Series

Parker’s G101/G102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 16.9 gpm.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	21 in stock

SKU 3089310047

$1,017.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	BI
Configuration	4 BOLT SQUARE, SAE B / ANSI 101-4	Additional Options	No Air Shift
Filter Included	No	Port Connection	NPT
Flow Rate	n/a	Maximum Fluid Temperature	180 °F
Media	n/a	Weight	20.4 kg (Max)
Port Type	Tapered Thread	Pump Type	Fixed
Shaft Type	SAE	Sensor Type	n/a
Circuit Path	Open	Displacement	up to 3.9 inch3/rev
Drain Option	No	Body Material	Cast Iron (Grey)
Configuration	Single	Port Location	Rear Ports
Seal Material	TEFLON	Control Method	n/a
For Fluid Type	Phosphate-ester	Shaft Diameter	1 inch
Maximum Flow Rate	n/a	Operating Pressure	up to 172 bar
Maximum Noise Level	n/a	Charge Pump Included	No
Maximum Displacement	64 cm3/rev	Radial Load Capacity	n/a
Direction of Rotation	Clockwise	Inlet Connection Size	NPT
Thru-Drive Capability	No	Outlet Connection Size	NPT 3/4 inch (Tank-plugged)
Maximum Operating Speed	2400 RPM	Minimum Fluid Temperature	-20 °C
Energy Recovery Capability	No	Maximum Operating Pressure	2500 psi
Maximum Kinematic Viscosity	7500 SUS	Minimum Kinematic Viscosity	50 SUS
