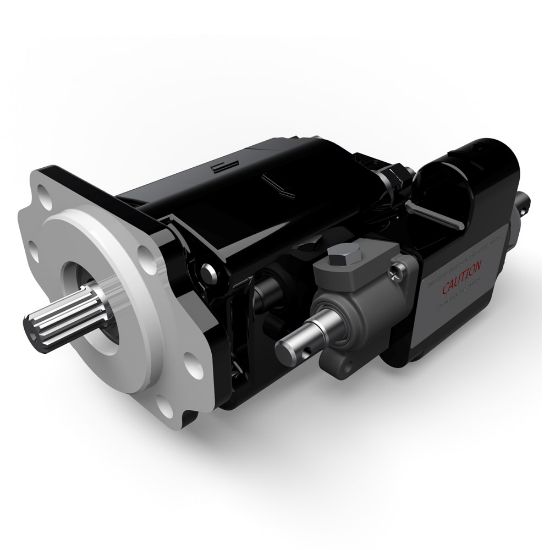

3089310416 - Cast Iron Pumps – G101/G102 Series

Parker’s G101/G102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 16.9 gpm.

Availability:	Backordered Estimated Lead Time: 37 days
Partner Available:	Backordered

SKU 3089310416

$1,017.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Rotation	CW
Configuration	4 BOLT SQUARE, SAE B / ANSI 101-4	Additional Options	No Air Shift
Seal Material	Buna-N	Filter Included	No
Port Connection	NPT	Flow Rate	n/a
Minimum Fluid Temperature	0 °F	Media	n/a
Weight	20.4 kg (Max)	Port Type	Tapered Thread
Pump Type	Fixed	Shaft Type	SAE
Sensor Type	n/a	Circuit Path	Open
Displacement	up to 3.9 inch3/rev	Drain Option	No
Body Material	Cast Iron (Grey)	Configuration	Single
Port Location	Rear Ports	Control Method	n/a
For Fluid Type	Phosphate-ester	Shaft Diameter	7/8 inch
Maximum Flow Rate	n/a	Operating Pressure	up to 2500 psi
Maximum Noise Level	n/a	Charge Pump Included	No
Maximum Displacement	3.9 inch3/rev	Radial Load Capacity	n/a
Direction of Rotation	Bi-Rotational	Inlet Connection Size	1-1/4 inch
Thru-Drive Capability	No	Outlet Connection Size	NPT 3/4 inch (Tank-plugged)
Maximum Operating Speed	2400 RPM	Maximum Fluid Temperature	80 °C
Energy Recovery Capability	No	Maximum Operating Pressure	172 bar
Maximum Kinematic Viscosity	7500 SUS	Minimum Kinematic Viscosity	50 SUS
