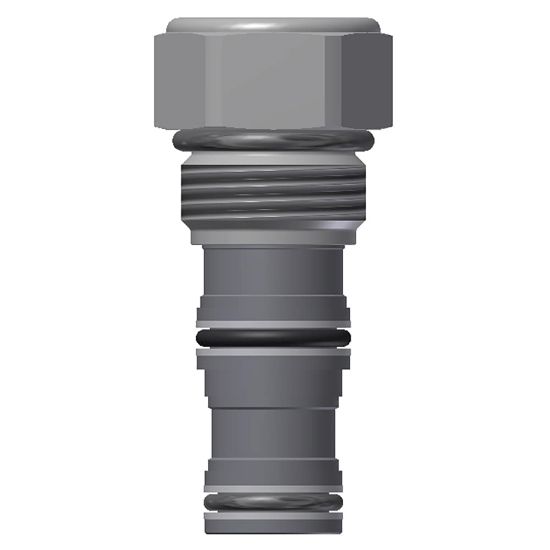

P08-3 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	1 Limited Stock

SKU P08-3

$131.84/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	C08
Type/Configuration	All ports blocked	Number of Positions	3 way
Seal Material	Nitrile	Configuration	All ports blocked
Minimum Operating Temperature	-34 °C	Maximum Flow Rate	n/a
Maximum Operating Temperature	+121 °C	Weight	0.25 lb
Cavity Size	C08	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Actuation Type	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Seal Material	Nitrile
Maximum Operating Pressure	350 bar	Flow Rate	n/a
Number of Positions	3 way	Installation Torque	36 lb-ft

Product resources

Literature and Reference Materials
