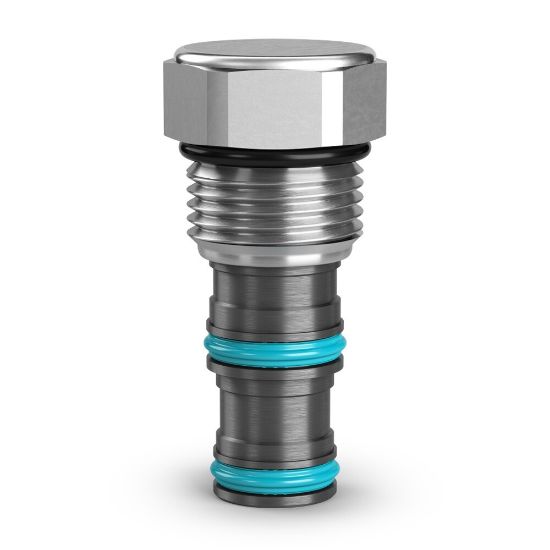

P10-3V - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU P10-3V

$95.05/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	C10
Number of Positions	3 way	Type/Configuration	All ports blocked
Seal Material	Fluorocarbon	Maximum Operating Pressure	350 bar
Number of Positions	3 way	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	n/a
Seal Material	Fluorocarbon	Cavity Size	C10
Flow Rate	n/a	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.18 kg	Configuration	All ports blocked
Actuation Type	n/a	Minimum Operating Temperature	-26 °C
Installation Torque	55 lb-ft	Maximum Operating Temperature	+400 °F
