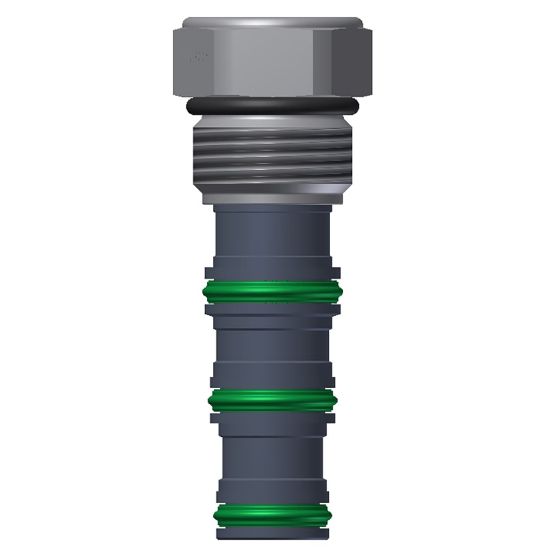

P10-4 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU P10-4

$116.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	All ports blocked
Seal Material	Nitrile	Cavity Size	C10
Number of Positions	4 way	Weight	0.41 lb
Configuration	All ports blocked	Cavity Size	C10
Number of Positions	4 way	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+250 °F	Body Material	n/a
Installation Torque	75 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	n/a	Maximum Flow Rate	n/a
Minimum Operating Temperature	-30 °F	Flow Rate	n/a
Seal Material	Nitrile	Maximum Operating Pressure	350 bar
