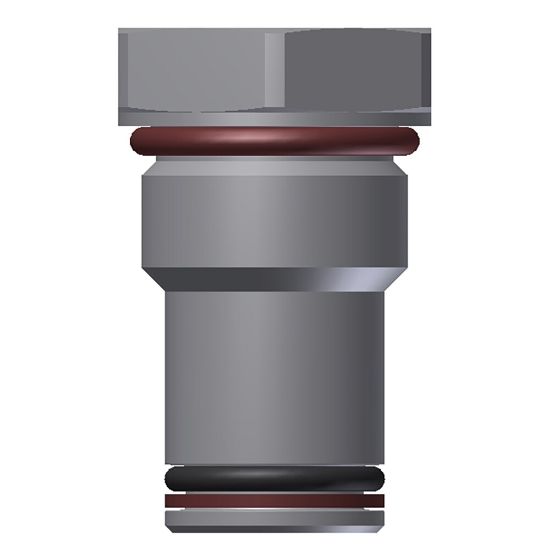

P12-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU P12-2

$198.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	2 way
Seal Material	Nitrile	Type/Configuration	All ports blocked
Cavity Size	C12	Cavity Size	C12
Maximum Operating Pressure	5000 psi	Seal Material	Nitrile
Body Material	n/a	Configuration	All ports blocked
Flow Rate	n/a	Maximum Flow Rate	n/a
Minimum Operating Temperature	-30 °F	Weight	0.29 kg
Installation Torque	131 Nm	Maximum Operating Temperature	+250 °F
Valve Material	All parts steel. All operating parts hardened steel	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	n/a	Number of Positions	2 way

Product resources

Literature and Reference Materials
