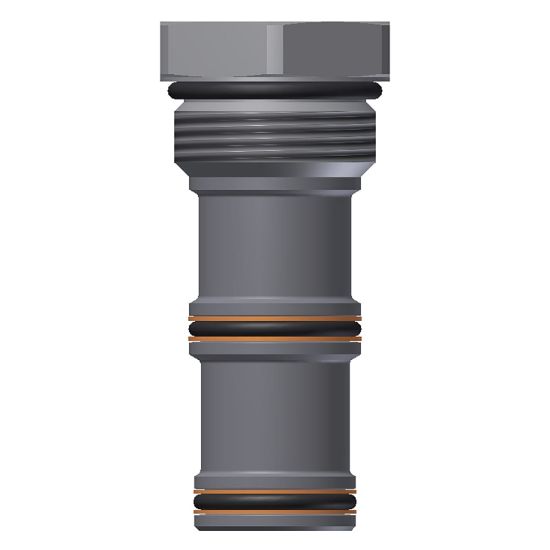

P16-3A - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU P16-3A

$198.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	3 way
Seal Material	Nitrile	Type/Configuration	Port 3 blocked
Cavity Size	C16	Installation Torque	235 Nm
Weight	0.75 lb	Maximum Flow Rate	n/a
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cavity Size	C16	Configuration	Port 3 blocked
Actuation Type	n/a	Minimum Operating Temperature	-30 °F
Flow Rate	n/a	Maximum Operating Pressure	5000 psi
Seal Material	Nitrile	Number of Positions	3 way
