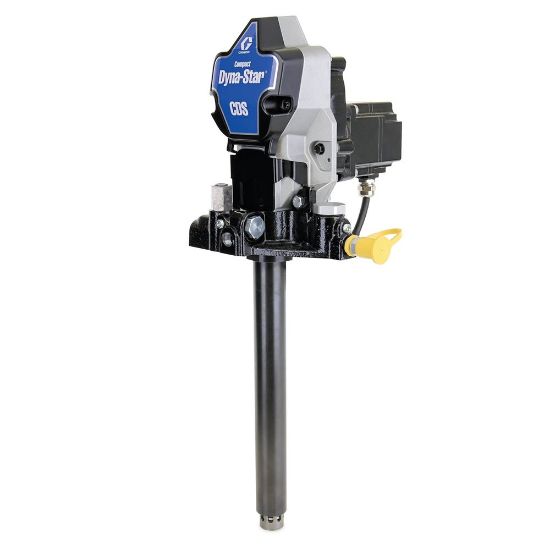

CD1000

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1000

$3,904.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	27 lb	Maximum Input Amperage	10 A
Number of Pump Elements	1	IP Rating	IP69K
Maximum NLGI Grade	2	Minimum Voltage	18 VDC
Maximum Cycle Rate	64 CPM	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Power Rating	0.25 HP	Power Connection Type	Deutsch DT04-2P Housing
Overall Height	23.9 Inch	Overall Depth	7.63 Inch
Maximum Operating Temperature	149 deg F	Maximum Continuous Cycle Rate	64 CPM
Lower Type	Shovel	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Approvals	CE;RCM
Motor Type	Brushless DC	Maximum Voltage	30 VDC
Sound Power Level	<80 dB(A)	Control Options	Integrated electrical motor controller
Maximum Fluid Output Pressure	3500 PSI	Throat Seal Type	Hythane 181
Fluid Outlet Thread Gender	Female	Maximum cST Grade	NLGI #2 Grease cST
Minimum Operating Temperature	-40 deg F	Voltage	24 VDC
Overall Width	9.8 Inch
