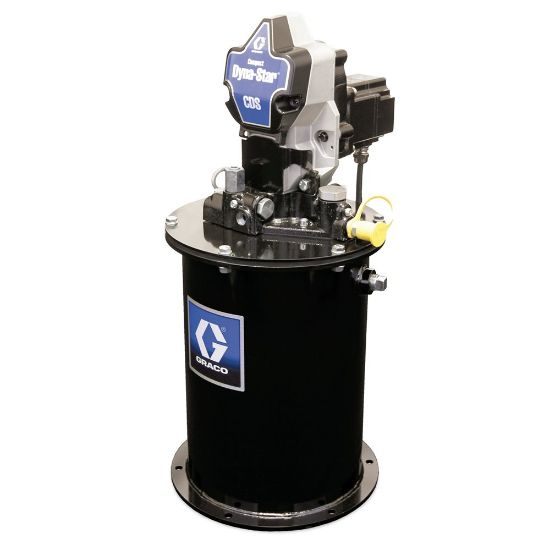

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CD1012

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1012

$5,367.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	66 lb
Level Reporting Sensor Maximum Signal	10 VDC	Maximum Working Pressure	3500 psi
Maximum Input Amperage	10 A	Maximum Cycle Rate	64 CPM
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Maximum cST Grade	NLGI #2 Grease cST	Power Rating	0.25 HP
Throat Seal Type	Hythane 181	Fluid Outlet Thread Gender	Female
Low Level Carry Current	0.02 A	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Number of Pump Elements	1	Lower Type	Shovel
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Low Level Switch Rating	24 VDC
Maximum NLGI Grade	2	Reservoir Size	12 L
Overall Width	11.5 Inch	IP Rating	IP69K
Control Options	Integrated electrical motor controller	Maximum Fluid Output Pressure	3500 PSI
Maximum Operating Temperature	149 deg F	Power Connection Type	Deutsch DT04-2P Housing;M12
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Maximum Continuous Cycle Rate	64 CPM
Voltage	24 VDC	Reservoir Material	Steel
Overall Height	39.0 Inch	Overall Depth	13.9 Inch
Motor Type	Brushless DC	Sound Power Level	<80 dB(A)
Approvals	CE;RCM	Maximum Voltage	30 VDC
