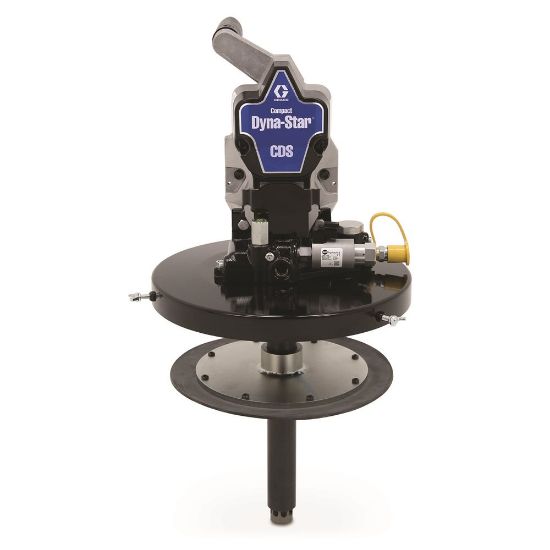

CD1130

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1130

$4,883.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	66 lb	Maximum Input Amperage	10 A
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Lower Type	Shovel
Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch	Number of Pump Elements	1
Maximum Voltage	30 VDC	Sound Power Level	<80 dB(A)
Approvals	CE;RCM	Motor Type	Brushless DC
Maximum Operating Temperature	149 deg F	Maximum Fluid Output Pressure	3500 PSI
Maximum Continuous Cycle Rate	64 CPM	Control Options	Integrated electrical motor controller
Vent Valve Maximum Operating Current	2 A	Fluid Outlet Thread Gender	Female
Low Level Carry Current	0.02 A	Throat Seal Type	Hythane 181
Overall Height	39.0 Inch	Overall Depth	13.9 Inch
Power Connection Type	Deutsch DT04-12PB Housing	Voltage	24 VDC
Overall Width	11.5 Inch	IP Rating	IP69K
Maximum NLGI Grade	2	Low Level Switch Rating	24 VDC
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Power Rating	0.25 HP
Maximum cST Grade	NLGI #2 Grease cST	Minimum Operating Temperature	-40 deg F
Minimum Voltage	18 VDC	Maximum Cycle Rate	64 CPM
