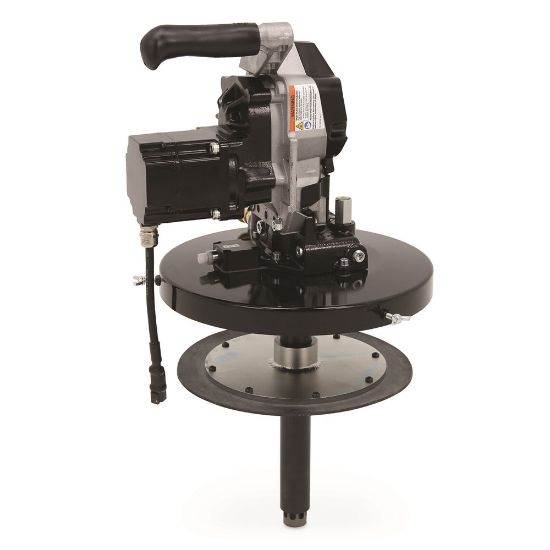

CD1132

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1132

$5,253.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Input Amperage	10 A
Weight	66 lb	Maximum Working Pressure	3500 psi
Voltage	24 VDC	Overall Height	39.0 Inch
Low Level Carry Current	0.02 A	Motor Type	Brushless DC
Overall Depth	13.9 Inch	Sound Power Level	<80 dB(A)
Maximum Voltage	30 VDC	Approvals	CE;RCM
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Maximum Cycle Rate	64 CPM
Power Rating	0.25 HP	Overall Width	11.5 Inch
Throat Seal Type	Hythane 181	Minimum Voltage	18 VDC
Maximum cST Grade	NLGI #2 Grease cST	Fluid Outlet Thread Gender	Female
Minimum Operating Temperature	-40 deg F	Lower Type	Shovel
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Number of Pump Elements	1	Low Level Switch Rating	24 VDC
Maximum NLGI Grade	2	IP Rating	IP69K
Vent Valve Maximum Operating Current	2 A	Control Options	Integrated electrical motor controller
Maximum Fluid Output Pressure	3500 PSI	Power Connection Type	Deutsch DT04-2P Housing;M12
Maximum Continuous Cycle Rate	64 CPM	Maximum Operating Temperature	149 deg F
