*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

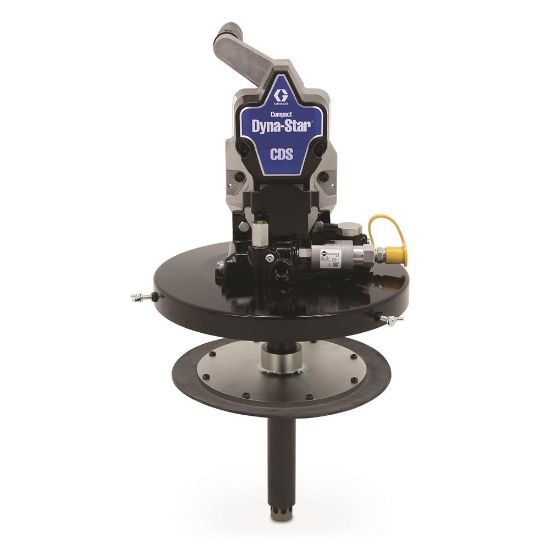

CD1332

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD1332

$5,519.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	66 lb	Maximum Input Amperage	10 A
Lower Type	Shovel	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Low Level Switch Rating	24 VDC	Number of Pump Elements	1
Maximum NLGI Grade	2	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Control Options	Integrated electrical motor controller	Vent Valve Maximum Operating Current	2 A
Maximum Voltage	30 VDC	Approvals	CE;RCM
Power Connection Type	Deutsch DT04-2P Housing;M12	Maximum Fluid Output Pressure	3500 PSI
Maximum Operating Temperature	149 deg F	Maximum Continuous Cycle Rate	64 CPM
Voltage	24 VDC	Low Level Carry Current	0.02 A
Fluid Outlet Thread Gender	Female	Overall Height	39.0 Inch
Motor Type	Brushless DC	Overall Depth	13.9 Inch
Sound Power Level	<80 dB(A)	Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)
Overall Width	11.5 Inch	IP Rating	IP69K
Minimum Voltage	18 VDC	Maximum Cycle Rate	64 CPM
Throat Seal Type	Hythane 181	Power Rating	0.25 HP
Maximum cST Grade	NLGI #2 Grease cST	Minimum Operating Temperature	-40 deg F
