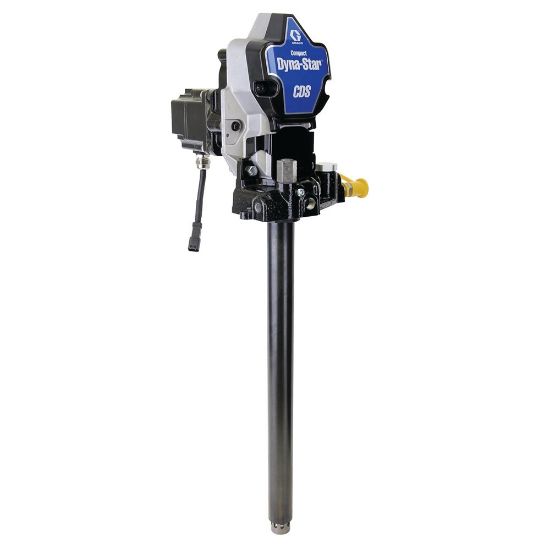

CD2000

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD2000

$4,066.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	30 lb
Maximum Working Pressure	3500 psi	Maximum Input Amperage	10 A
Overall Height	30 Inch	Maximum NLGI Grade	2
IP Rating	IP69K	Number of Pump Elements	1
Maximum Cycle Rate	64 CPM	Power Connection Type	Deutsch DT04-2P Housing
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Power Rating	0.25 HP
Maximum Continuous Cycle Rate	64 CPM	Overall Depth	7.63 Inch
Maximum Operating Temperature	149 deg F	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Lower Type	Shovel
Maximum Voltage	30 VDC	Motor Type	Brushless DC
Approvals	CE;RCM	Sound Power Level	<80 dB(A)
Control Options	Integrated electrical motor controller	Maximum Fluid Output Pressure	3500 PSI
Throat Seal Type	Hythane 181	Minimum Operating Temperature	-40 deg F
Fluid Outlet Thread Gender	Female	Maximum cST Grade	NLGI #2 Grease cST
Minimum Voltage	18 VDC	Overall Width	9.8 Inch
Voltage	24 VDC
