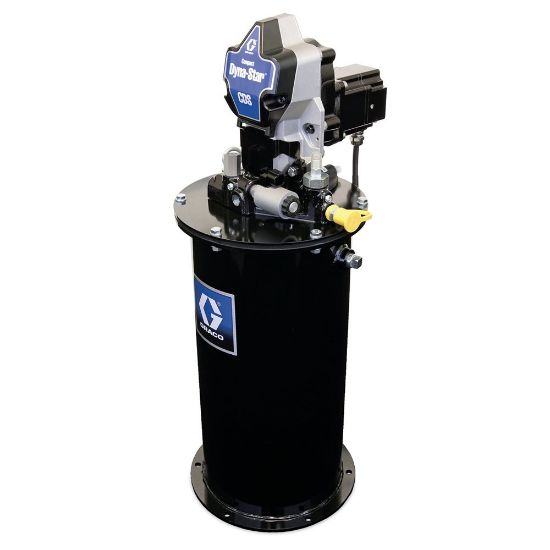

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CD2124

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD2124

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Maximum Input Amperage	10 A	Weight	73 lb
Level Reporting Sensor Maximum Signal	10 VDC	Overall Height	50.9 Inch
Maximum Fluid Output Pressure	3500 PSI	Reservoir Size	20 L
Control Options	Integrated electrical motor controller	Vent Valve Maximum Operating Current	2 A
Maximum Operating Temperature	149 deg F	Maximum Continuous Cycle Rate	64 CPM
Low Level Carry Current	0.02 A	Power Connection Type	Deutsch DT Series 2 Pin
Voltage	24 VDC	Reservoir Material	Steel
Maximum Voltage	30 VDC	Overall Depth	13.9 Inch
Sound Power Level	<80 dB(A)	Approvals	CE;RCM
Motor Type	Brushless DC	Power Rating	0.25 HP
Minimum Voltage	18 VDC	Maximum Cycle Rate	64 CPM
Fluid Outlet Thread Type	Tapered Pipe Thread (NPT)	Fluid Outlet Thread Gender	Female
Maximum cST Grade	NLGI #2 Grease cST	Minimum Operating Temperature	-40 deg F
Throat Seal Type	Hythane 181	Lower Type	Shovel
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Fluid Outlet Size	3/8 NPT and/or 1/4 NPT Inch
Number of Pump Elements	1	Overall Width	11.5 Inch
IP Rating	IP69K	Maximum NLGI Grade	2
Low Level Switch Rating	24 VDC
