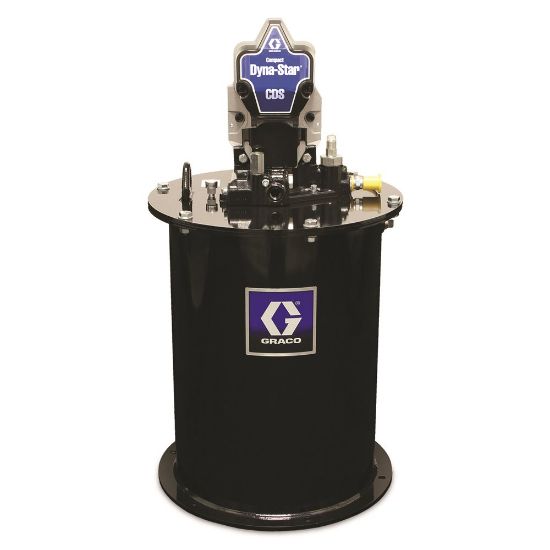

CD3063

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3063

$7,191.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	83 lb	Power Connection Type	Deutsch DT04-2P Housing
Power Rating	0.25 HP	Reservoir Size	60 lb
Overall Width	15 Inch	Approvals	CE;EAC;RCM
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Sound Pressure Level	70 dB(A)	Throat Seal Type	Hythane 181
Maximum Cycle Rate	64 CPM	Maximum Intermittent Cycle Rate	64 CPM
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Maximum cST Grade	NLGI #2 cST
Overall Height	28.4 Inch	IP Rating	IP69K
Maximum NLGI Grade	2	Low Level Switch Rating	24 VDC
Seal Material	Buna-N	Number of Pump Elements	1
Low Level Switching Current	0.2 A	Model	Dyna-Star
Fluid Outlet Size	3/8, 1/4 Inch	Maximum Fill Inlet Pressure	500 PSI
Maximum Continuous Cycle Rate	64 CPM	Fluid Outlet Thread Type	NPT
Maximum Fluid Output Pressure	3500 PSI	Overall Depth	15.6 Inch
Lower Type	Integrated Shovel Loading	Number of Outlets	2
Fluid Outlet Thread Gender	Female	Reservoir Material	Steel
Voltage	24 VDC	Maximum Operating Temperature	65 deg F
Maximum Voltage	30 VDC	Output Per Cycle	1 Cubic cm
Motor Type	Brushless DC
