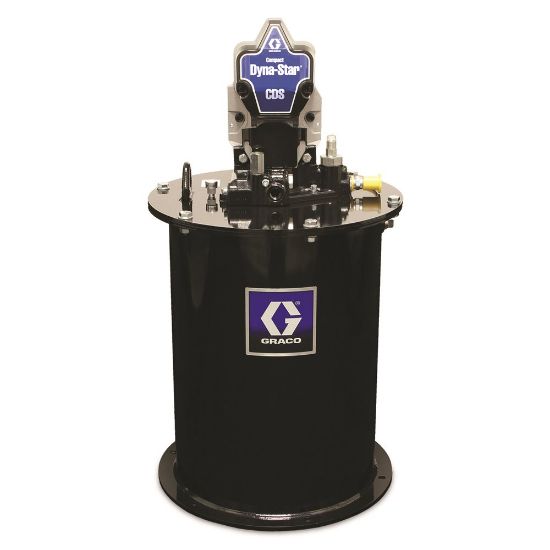

CD3064

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3064

$7,267.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	83 lb	Level Reporting Sensor Maximum Signal	10 VDC
Model	Dyna-Star	Maximum Continuous Cycle Rate	64 CPM
Maximum Fluid Output Pressure	3500 PSI	Maximum Fill Inlet Pressure	500 PSI
Fluid Outlet Thread Type	NPT	Lower Type	Integrated Shovel Loading
Overall Depth	15.6 Inch	Maximum Intermittent Cycle Rate	64 CPM
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Voltage	24 VDC
Maximum Operating Temperature	65 deg F	Motor Type	Brushless DC
Fluid Outlet Size	3/8, 1/4 Inch	Output Per Cycle	1 Cubic cm
Maximum Voltage	30 VDC	Minimum Voltage	18 VDC
Sound Pressure Level	70 dB(A)	Maximum Cycle Rate	64 CPM
Approvals	CE;EAC;RCM	Power Rating	0.25 HP
Minimum Operating Temperature	-40 deg F	Power Connection Type	Deutsch DT04-2P Housing
Throat Seal Type	Hythane 181	Reservoir Material	Steel
Number of Outlets	2	Fluid Outlet Thread Gender	Female
Low Level Carry Current	0.02 A	Number of Pump Elements	1
Maximum cST Grade	NLGI #2 cST	Overall Height	28.4 Inch
Maximum NLGI Grade	2	Seal Material	Buna-N
Reservoir Size	60 lb	IP Rating	IP69K
Overall Width	15 Inch
