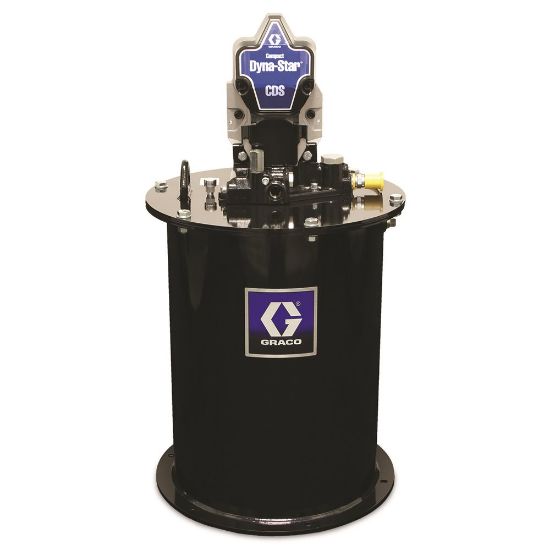

CD3071

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3071

$6,431.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	83 lb	Throat Seal Type	Hythane 181
Minimum Operating Temperature	-40 deg F	Fluid Outlet Thread Gender	Female
Number of Outlets	2	Approvals	CE;EAC;RCM
Reservoir Material	Steel	Maximum Operating Temperature	65 deg F
Voltage	24 VDC	Reservoir Size	60 lb
Overall Height	28.4 Inch	IP Rating	IP69K
Seal Material	Buna-N	Low Level Switch Rating	24 VDC
Maximum NLGI Grade	2	Power Connection Type	Deutsch DT04-2P Housing
Overall Width	15 Inch	Power Rating	0.25 HP
Maximum Cycle Rate	64 CPM	Sound Pressure Level	70 dB(A)
Minimum Voltage	18 VDC	Maximum Continuous Cycle Rate	64 CPM
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Lower Type	Integrated Shovel Loading
Maximum Fill Inlet Pressure	500 PSI	Overall Depth	15.6 Inch
Number of Pump Elements	1	Maximum Intermittent Cycle Rate	64 CPM
Maximum cST Grade	NLGI #2 cST	Output Per Cycle	1 Cubic cm
Maximum Voltage	30 VDC	Motor Type	Brushless DC
Fluid Outlet Size	3/8, 1/4 Inch	Fluid Outlet Thread Type	NPT
Low Level Switching Current	0.2 A	Maximum Fluid Output Pressure	3500 PSI
Model	Dyna-Star
