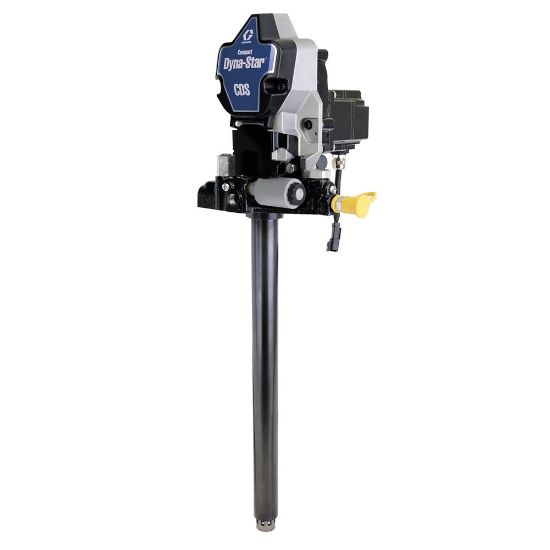

CD3100

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3100

$4,322.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure	3500 psi
Weight	27 lb	Maximum Intermittent Cycle Rate	64 CPM
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Maximum cST Grade	NLGI #2 cST
Vent Valve Maximum Operating Current	1 A	Maximum NLGI Grade	2
Seal Material	Buna-N	Number of Pump Elements	1
Maximum Voltage	30 VDC	Output Per Cycle	1 Cubic cm
Fluid Outlet Size	3/8, 1/4 Inch	Model	Dyna-Star
Fluid Outlet Thread Type	NPT	Maximum Continuous Cycle Rate	64 CPM
Maximum Fluid Output Pressure	3500 PSI	Lower Type	Integrated Shovel Loading
Number of Outlets	2	Overall Height	27.88 Inch
Fluid Outlet Thread Gender	Female	Voltage	24 VDC
Maximum Operating Temperature	65 deg F	Overall Width	9.8 Inch
Motor Type	Brushless DC	Vent Valve Maximum Operating Power	25 W
IP Rating	IP69K	Overall Depth	10.18 Inch
Power Connection Type	Deutsch DT04-2P Housing	Throat Seal Type	Hythane 181
Minimum Operating Temperature	-40 deg F	Approvals	CE;EAC;RCM
Sound Pressure Level	70 dB(A)	Minimum Voltage	18 VDC
Power Rating	0.25 HP	Maximum Cycle Rate	64 CPM
