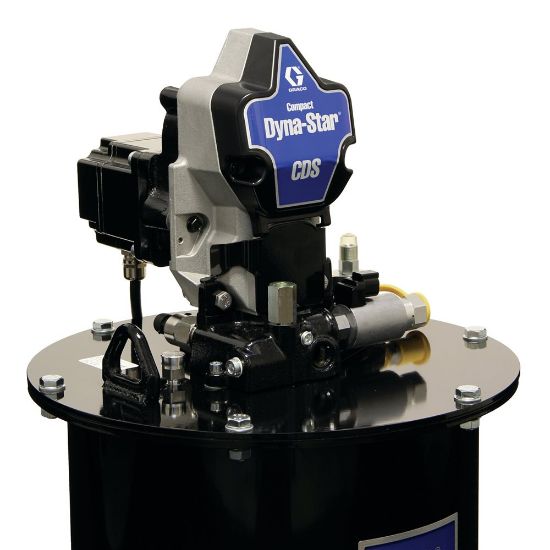

CD3263

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3263

$7,628.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Reporting Maximum Signal	5 VDC
Maximum Working Pressure	3500 psi	Pressure Reporting Minimum Signal	1 VDC
Weight	83 lb	Pressure Reporting Transducer Full Range	5000 psi
Fluid Outlet Thread Type	NPT	Maximum Continuous Cycle Rate	64 CPM
Overall Depth	15.6 Inch	Maximum Fill Inlet Pressure	500 PSI
Lower Type	Integrated Shovel Loading	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Maximum Intermittent Cycle Rate	64 CPM	Maximum cST Grade	NLGI #2 cST
Power Connection Type	Deutsch DT04-12PB Housing	Maximum Voltage	30 VDC
Output Per Cycle	1 Cubic cm	Motor Type	Brushless DC
Vent Valve Maximum Operating Power	25 W	Maximum Fluid Output Pressure	3500 PSI
Low Level Switching Current	0.2 A	Fluid Outlet Size	3/8, 1/4 Inch
Minimum Operating Temperature	-40 deg F	Maximum Cycle Rate	64 CPM
Throat Seal Type	Hythane 181	Sound Pressure Level	70 dB(A)
Minimum Voltage	18 VDC	Approvals	CE;EAC;RCM
Fluid Outlet Thread Gender	Female	Maximum Operating Temperature	65 deg F
Reservoir Material	Steel	Number of Outlets	2
Voltage	24 VDC	Maximum NLGI Grade	2
Overall Height	28.4 Inch	IP Rating	IP69K
Vent Valve Maximum Operating Current	1 A	Seal Material	Buna-N
Number of Pump Elements	1	Low Level Switch Rating	24 VDC
Power Rating	0.25 HP	Overall Width	15 Inch
Reservoir Size	60 lb
