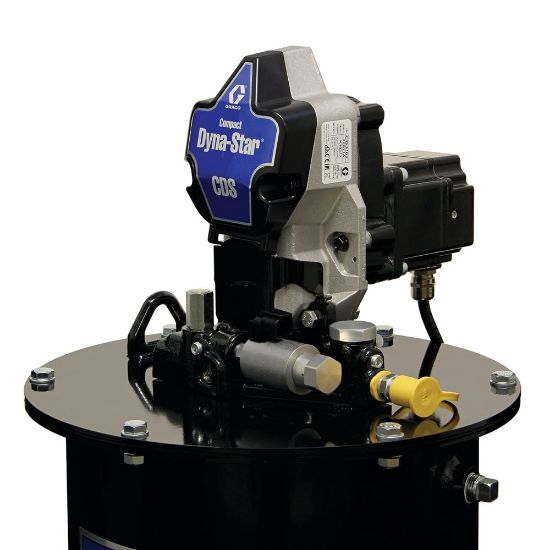

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

CD3271

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3271

$6,868.50/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Reporting Minimum Signal	1 VDC
Pressure Reporting Transducer Full Range	5000 psi	Maximum Working Pressure	3500 psi
Weight	83 lb	Pressure Reporting Maximum Signal	5 VDC
Throat Seal Type	Hythane 181	Fluid Outlet Thread Gender	Female
Number of Outlets	2	Reservoir Material	Steel
Maximum Operating Temperature	65 deg F	Voltage	24 VDC
Vent Valve Maximum Operating Power	25 W	Power Connection Type	Deutsch DT04-12PB Housing
Reservoir Size	60 lb	Overall Width	15 Inch
Seal Material	Buna-N	IP Rating	IP69K
Approvals	CE;EAC;RCM	Maximum Cycle Rate	64 CPM
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Sound Pressure Level	70 dB(A)	Power Rating	0.25 HP
Maximum cST Grade	NLGI #2 cST	Maximum Intermittent Cycle Rate	64 CPM
Component Technology	Brushless Electric Motor;Shovel-loading pump tube	Lower Type	Integrated Shovel Loading
Overall Depth	15.6 Inch	Low Level Switch Rating	24 VDC
Maximum NLGI Grade	2	Number of Pump Elements	1
Vent Valve Maximum Operating Current	1 A	Overall Height	28.4 Inch
Fluid Outlet Size	3/8, 1/4 Inch	Output Per Cycle	1 Cubic cm
Motor Type	Brushless DC	Maximum Voltage	30 VDC
Fluid Outlet Thread Type	NPT	Maximum Continuous Cycle Rate	64 CPM
Low Level Switching Current	0.2 A	Maximum Fill Inlet Pressure	500 PSI
Maximum Fluid Output Pressure	3500 PSI
