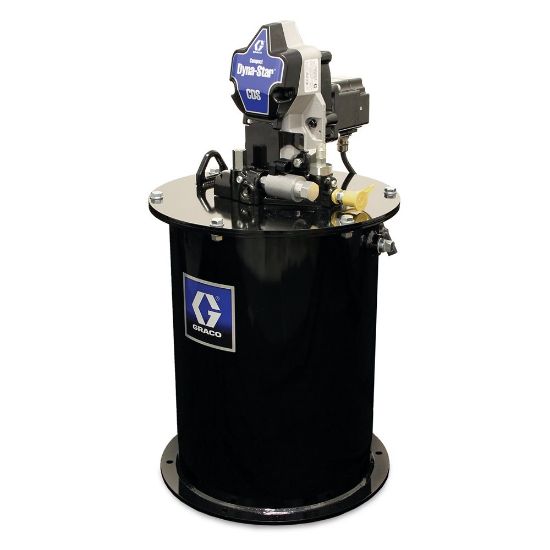

CD3364

Manufacturer: Graco

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU CD3364

$7,562.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Reporting Minimum Signal	1 VDC
Pressure Reporting Transducer Full Range	5000 psi	Weight	83 lb
Level Reporting Sensor Maximum Signal	10 VDC	Pressure Reporting Maximum Signal	5 VDC
Maximum Working Pressure	3500 psi	Power Connection Type	Deutsch DT04-12PB Housing
Motor Type	Brushless DC	Vent Valve Maximum Operating Power	25 W
Output Per Cycle	1 Cubic cm	Maximum Voltage	30 VDC
Fluid Outlet Size	3/8, 1/4 Inch	Power Rating	0.25 HP
Minimum Operating Temperature	-40 deg F	Minimum Voltage	18 VDC
Sound Pressure Level	70 dB(A)	Throat Seal Type	Hythane 181
Maximum Cycle Rate	64 CPM	Approvals	CE;EAC;RCM
Number of Outlets	2	Fluid Outlet Thread Gender	Female
Low Level Carry Current	0.02 A	Voltage	24 VDC
Maximum Operating Temperature	65 deg F	Reservoir Material	Steel
IP Rating	IP69K	Overall Height	28.4 Inch
Maximum NLGI Grade	2	Vent Valve Maximum Operating Current	1 A
Number of Pump Elements	1	Seal Material	Buna-N
Overall Width	15 Inch	Reservoir Size	60 lb
Maximum Fluid Output Pressure	3500 PSI	Maximum Fill Inlet Pressure	500 PSI
Fluid Outlet Thread Type	NPT	Overall Depth	15.6 Inch
Maximum Continuous Cycle Rate	64 CPM	Lower Type	Integrated Shovel Loading
Maximum Intermittent Cycle Rate	64 CPM	Component Technology	Brushless Electric Motor;Shovel-loading pump tube
Maximum cST Grade	NLGI #2 cST
