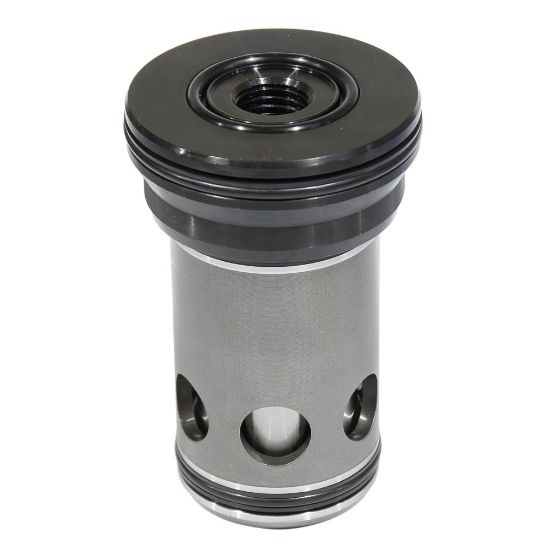

CE063S07U15N

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU CE063S07U15N

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	3600 lpm
For Fluid Type	Hydraulic Oil	Port Connection	NG63
Function	Pressure Function, Directional function	Cracking Pressure	4 bar
Material	Steel	Configuration	With Orifice
Minimum Operating Temperature	-20 °C	Mounting Option	Slip-in Cartridge
Poppet Area Ratio	AA 96 % from AC	Maximum Operating Temperature	60 °C
Actuation Type	Hydraulic Pressure	Poppet Design	Closed, With Poppet Sealing
Product Series	Seat Valve	Marking	Standard
Seal Material	NBR
