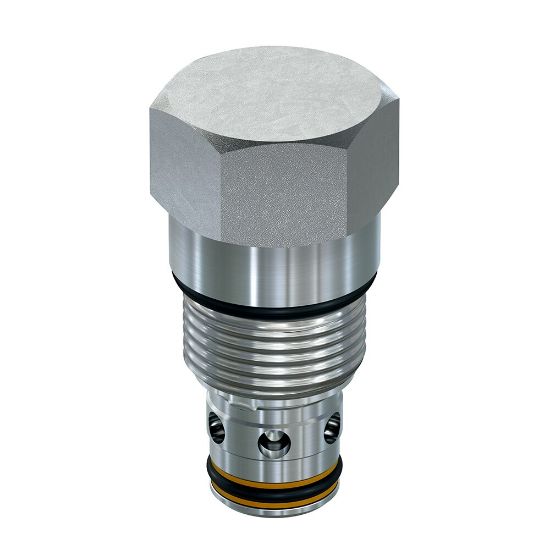

Check Valve with Thermal Relief - D04F2-7.0-35N

Name: Check Valve with Thermal Relief - D04F2-7.0-35N
SKU: D04F2-7.0-35N

Parker’s poppet style check valve with thermal relief allow flows up to 130 lpm (40 gpm) and pressure to 420 bar (6,000 psi), with thermal relieving in the reverse direction to protect the circuit from high hydraulic fluid thermal expansion pressures.

Availability:

Backordered

SKU D04F2-7.0-35N

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	102 PSI, 7 BAR	Flow Rate	40 GAL/MIN, 130 L/MIN
Pressure Relief Setting	507 PSI, 35 BAR	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Maximum Operating Temperature	250 °F	Body Material	n/a
Maximum Operating Pressure	6000 psi	For Fluid Type	Synthetic Hydraulic Fluids
Flow Direction	Bi-directional	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Valve Material	Hardened Steel (all operating parts)
Operating Temperature	-30 to 250 °F	Maximum Inlet Pressure Rating	6000 psi
Cavity Size	C10-2	Installation Torque	50 Nm
Weight	0.29 lb	Function	Thermal Relief
Flow Rate	130 L/min	Leak Rate	3 drops/min @ Crack Pressure
Cracking Pressure	102 psi	Maximum Flow Rate	130 L/min
Configuration	Poppet Type	Operation Type	Check Valve W/Relief Feature
Pressure Relief Setting	35 bar
