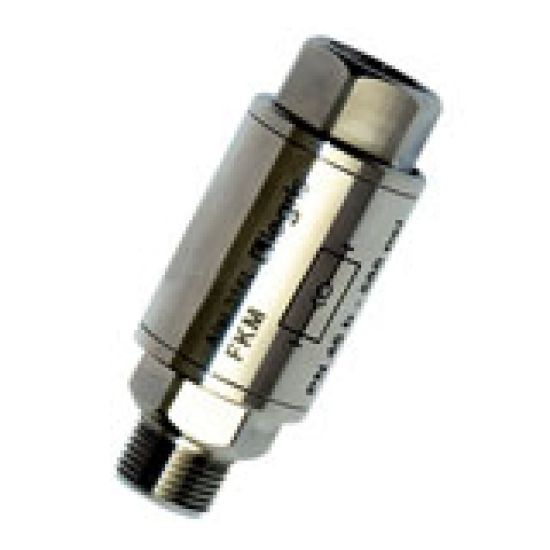

Picture of Check Valves - 4891 17 17

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Check Valves - 4891 17 17

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.
Availability:
Backordered
SKU 4891 17 17
$176.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionFluid System Connectors Division
Minimum Operating Temperature-4 °FSeal MaterialFKM
Gripping Ring MaterialStainless SteelBody Material316L Stainless Steel
MediaCompressed AirApplicationPneumatics, Robotics, Textile, Semi-conductors, Packaging
Valve ConfigurationOne WayConnection 1 Tube Outside DiameterN/A
Connection 2 Tube Outside DiameterN/AMaximum Operating Pressure580 psi
Maximum Operating Temperature356 °FShapeThreaded
Product StylePipe to PipeConnection TypeBSPP
Thread Material316L Stainless SteelConnection 1 SizeBSPP
Connection 2 SizeBSPPCracking Pressure3.6 psi
Connection 1 Thread Size3/8 mmConnection 2 Thread Size3/8 mm
