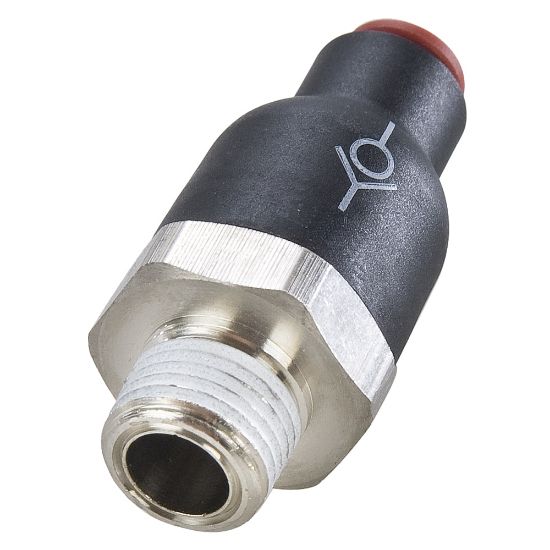

Check Valves - 68PLCK-4M-M5

Name: Check Valves - 68PLCK-4M-M5
SKU: 68PLCK-4M-M5

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:

Backordered

SKU 68PLCK-4M-M5

$24.87

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Metric
Product Style	Tube to Pipe	Seal Material	Nitrile
Shape	Threaded	Connection 2 Size	Metric
Maximum Operating Pressure	10 bar	Connection 1 Thread Size	N/A
Media	Compressed Air	Body Material	Nylon
Division	Fluid System Connectors Division	Connection 1 Size	Push-to-connect
Connection 2 Tube Outside Diameter	N/A	Gripping Ring Material	Stainless Steel
Maximum Operating Temperature	65 °C	Connection 1 Tube Outside Diameter	N/A
Cracking Pressure	7 psi	Minimum Operating Temperature	1 °C
Valve Configuration	One Way	Application	Robotics
Connection 2 Thread Size	M5x0.8 mm	Thread Material	Plated Brass
