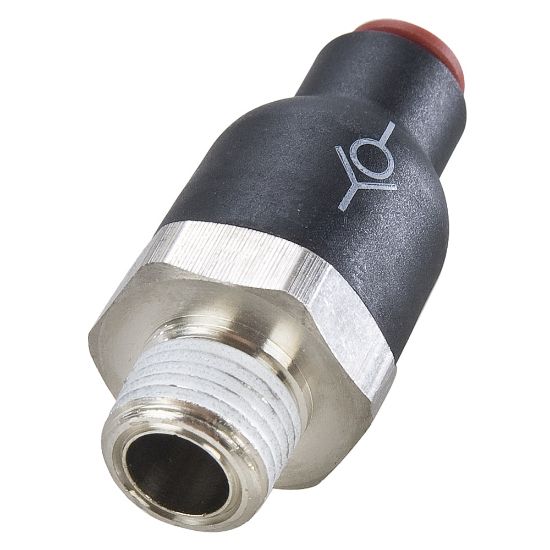

Picture of Check Valves - W68PLCK-6-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Check Valves - W68PLCK-6-4

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.
Availability:
5 in stock
Olivette, MO5
SKU W68PLCK-6-4
$42.09
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Tube Outside Diameter3/8 inch
Maximum Operating Pressure145 psiThread MaterialPlated Brass
Valve ConfigurationOne WayConnection 2 SizeNPT
ApplicationPneumatics, Robotics, Textile, Semi-conductors, PackagingSeal MaterialNitrile
Product StyleTube to PipeMaximum Operating Temperature150 °F
Gripping Ring MaterialStainless SteelDivisionFluid System Connectors Division
Body MaterialNylonMediaCompressed Air
Connection 1 SizePush-to-connectConnection 2 Tube Outside DiameterN/A
Connection 1 Thread SizeN/AShapeThreaded
Connection TypeNPTMinimum Operating Temperature1 °C
Connection 2 Thread Size1/4 inchCracking Pressure7 psi
California Residents: Prop-65 Warning
Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

Compliance, Certifications & Safety

Literature and Reference Materials
