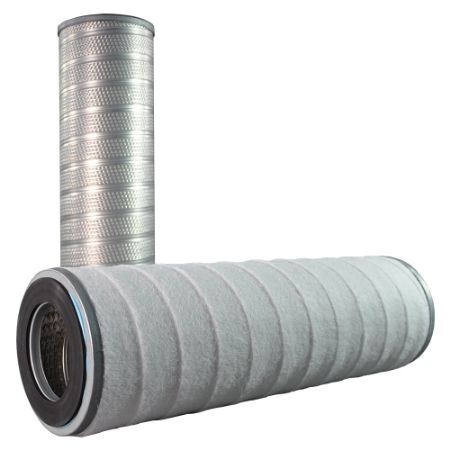

CHEMELEAN® CM Liquid Filter Cartridge
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Chemelean® Series CM filter cartridges remove contaminants from a wide range of liquid applications. Chemelean cartridges are 6"OD with double open-end sealing and 20" or 40" lengths. The cartridge range offers pleated synthetic, cellulose or glass options as well as a PEACH® depth option.
Chemelean cartridges are available from 1 to 100 micron rating options depending on style and media selected.
Chemelean cartridges are designed to be used in PECO Series 55C liquid vessels.
INDUSTRIES
•Industrial
•Oil & Gas
FEATURES/BENEFITS
•Pleated option for rigid, solid contaminant removal
•Depth option for deformable, semi-solid contaminant removal
•6” diameter cartridge makes change-outs easier compared to multiple small diameter cartridges
APPLICATIONS
•Amine
•Condensate
•Glycol
•Hydrocarbons
•Lube Oils
•Water
Read More...Chemelean cartridges are available from 1 to 100 micron rating options depending on style and media selected.
Chemelean cartridges are designed to be used in PECO Series 55C liquid vessels.
INDUSTRIES
•Industrial
•Oil & Gas
FEATURES/BENEFITS
•Pleated option for rigid, solid contaminant removal
•Depth option for deformable, semi-solid contaminant removal
•6” diameter cartridge makes change-outs easier compared to multiple small diameter cartridges
APPLICATIONS
•Amine
•Condensate
•Glycol
•Hydrocarbons
•Lube Oils
•Water
| Action | SKU | Availability | Partner Available | Price | UOM | pH Range | Core Material | Micron Rating | Filter Material | Cartridge Length | End Cap Material | Maximum Operating Temperature | Seal Material | Body Material | Filter Construction | Product Series | Model Number | Industry | Flow Direction | Changeout Pressure Differential | Maximum Pressure Differential | Quantity per Box | End Cap Configuration | Nominal Inside Diameter | Nominal Outside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 38076 | Backordered | Backordered | $82.77/each | EA | 3-9 | Tin-Plated Steel | 5 | Polyester | 20" | Tin-Plated Steel | 240 F | Viton | Tin-Plated Steel | Pleated | CM-E | ELMT CM-E-2050V | Industrial | Outside-to-inside | 35 psid | 50 psid | 1 | DOE - Double Open End | 3.5 inch | 6 inch |
