CM3BBFV

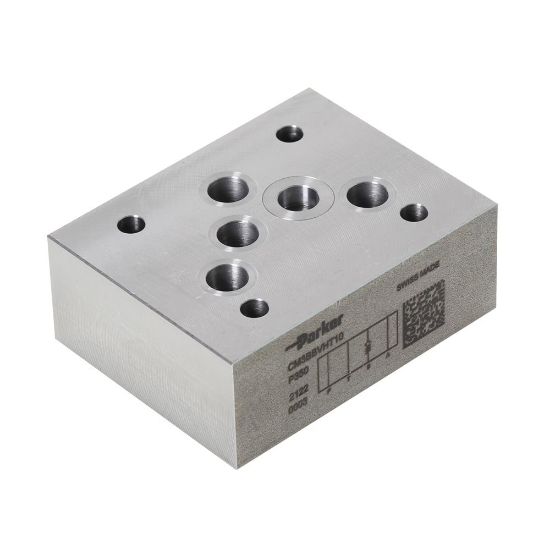

Parker CM3BBFV | Check Valve | Function From Manifold To Directional Valve, Check Valve In Channel B | Max. Flow Rate 76 lpm | Port Connection NG10 / CETOP 05

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	Backordered

SKU CM3BBFV

$619.08/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Parker direct operated check valves series CM in sandwich design are part of Parker's complete range of sandwich plate valves and ensure an easy configuration of conventional stack systems. Additionally they provide a very good price-performance ratio.

Series CM is available in two sizes, NG06 and NG10. Depending on the function required, one or two check valves are arranged in ports P, T, A, and B. Number and flow direction can be selected from the ordering code.

Features:

8 options for the arrangement of the check valve in the body - multitude of uses for hydraulic switching
Valve bodies are made of steel - extra strength and durability
Function can be changed by turning the valve - easy handling
Short delivery time for most versions - no warehousing necessary
Two sizes:

- CM2 - NG06 (CETOP 03)

- CM3 - NG10 (CETOP 05)
Maximum operating pressure 350 bar

Applications:

Suitable for general hydraulic applications
Machine tools
Tire presses

Markets:

Industrial | Machine tools | Rubber & tire processing

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Flow Rate	76 lpm
Port Connection	NG10 / CETOP 05	Function	From Manifold To Directional Valve, Check Valve In Channel B
Parker Group	Fluid Connector	Parker Division	Fluid System Connector
