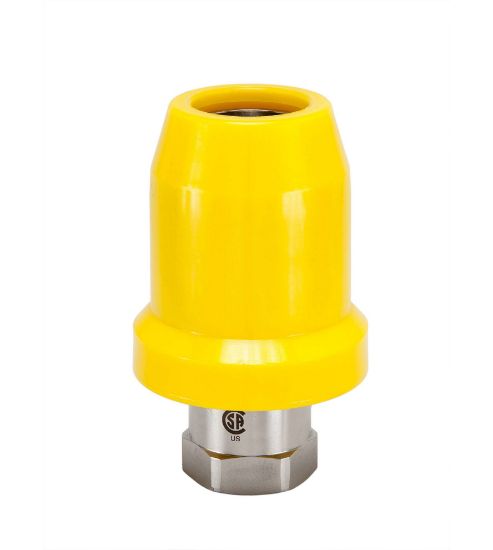

NGVC2-P36 - CNG Push-to-Connect Fueling Nozzles - NGV Nozzles Series

Located on CNG fueling dispensers, Parker’s NGVC2 Nozzle easily connects with FMS Series receptacles and others certified to ANSI/CSA/NGV1 standards

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	2 Limited Stock

SKU NGVC2-P36

$325.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3600 PSI
Connection Thread Size	9/16 - 18 inch	Sleeve Type	Non-marring polyurethane
Connection Type	Push-to Connect	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	248 bar	Body Material	Stainless Steel
Fitting Connection Type	UNF	Seal Material	Nitrile and Urethane
Flow Rate	2100 SCFM	Specifications Met	ANSI/CSA NGV1 certified
Lock Type	Ball Lock	Maximum Operating Temperature	185 °F
