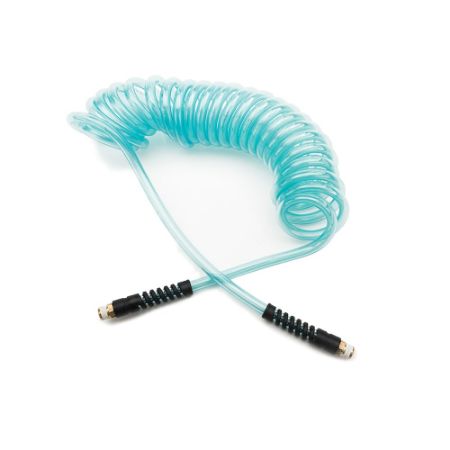

Coiled Air Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s NoMar™ Fast-Stor® Coiled Air Hose (95UFS series) is manufactured from a durable, abrasion-resistant, polyurethane. It is an extremely flexible coiled air hose for pneumatic applications. The non-marring polyurethane makes the NoMar™ Fast-Stor® Coiled Air Hose an excellent product that is safe for use around finished or delicate surfaces such as automotive repair or furniture and cabinetry manufacturing and withstands the abuse in automation and industrial pneumatic applications. For further information, please review the literature listed under the Product Support tab.
Markets:
• Industrial Pneumatics
• Industrial Automation
• Automotive service, assembly and repair
• Construction and finish carpentry
• Cabinetry and furniture manufacturing
• Fluid Handling
• Marine
Features/Benefits:
• Manufactured from 95 durometer, abrasion-resistant polyurethane
• Non-marring polyurethane is safe for use with delicate of finished surfaces
• Excellent memory characteristics over a wide temperature range
• Light weight and extreme flexibility
• Long service life in rugged applications
Applications:
• Air Hose
• Pneumatic assembly tools
• Blow guns
• Construction
• Carpentry
• Furniture manufacturing
• Manufacturing air drops
• Marine
• Water hose
Technical Specifications:
• Tube: Transparent blue polyurethane; additional colors available upon request
• Fittings: Brass NPT swivel; thermoplastic strain relief
• Pigtail Lengths - 8" and 16" with NPT swivel on each end
• Pre-applied thread sealant on all fittings
• Extended length approximately 92% of unit length
| Action | SKU | Availability | Partner Available | Price | UOM | Color | Working Length (ft) | Maximum Working Pressure (psi) | Hose I.D. (inch) | Burst Pressure | Hose Outside Diameter | Disclaimer | Maximum Operating Temperature | Retracted Length | Compatible Fitting | Minimum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95UFS-53-TBL-010 | Backordered | Backordered | $52.75/each | EA | Blue, Transparent | 10 | 175 | 3/16 | 36.2 bar | 5/16 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 7.5 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-53-TBL-025 | Backordered | 9 in stock | $70.87/each | EA | Blue, Transparent | 25 | 175 | 3/16 | 36.2 bar | 5/16 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 21.5 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-64-BLK-015 | Backordered | Backordered | $56.98/each | EA | Black | 15 | 155 | 1/4 | 32.1 bar | 10 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 9 inch | 1/4" NPT | -40 °C | |
| 95UFS-64-BLK-025 | Backordered | Backordered | $77.59/each | EA | Black | 25 | 155 | 1/4 | 465 psi | 3/8 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 16 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-64-BLU-015 | Backordered | Backordered | $56.72/each | EA | Blue | 15 | 155 | 1/4 | 32.1 bar | 3/8 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 9 inch | 1/4" NPT | -40 °C | |
| 95UFS-64-BLU-025 | Backordered | 11 in stock | $77.59/each | EA | Blue | 25 | 155 | 1/4 | 465 psi | 3/8 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 16 inch | 1/4" NPT | -40 °C | |
| 95UFS-64-RED-015 | Backordered | Backordered | $56.72/each | EA | Red | 15 | 155 | 1/4 | 32.1 bar | 10 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 9 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-64-RED-025 | Backordered | 1 Limited Stock | $77.59/each | EA | Red | 25 | 155 | 1/4 | 32.1 bar | 10 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 16 inch | 1/4" NPT | -40 °C | |
| 95UFS-64-TBL-010 | Backordered | 55 in stock | $53.42/each | EA | Blue, Transparent | 10 | 155 | 1/4 | 465 psi | 10 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 5.5 inch | NoMar™ Fast-Stor® Fittings | -40 °F | |
| 95UFS-64-TBL-015 | Backordered | 19 in stock | $64.26/each | EA | Blue, Transparent | 15 | 155 | 1/4 | 465 psi | 10 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 9 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-64-TBL-020 | Backordered | 38 in stock | $72.57/each | EA | Blue, Transparent | 20 | 155 | 1/4 | 465 psi | 10 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 13 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-64-TBL-025 | Backordered | 1 Limited Stock | $80.09/each | EA | Blue, Transparent | 25 | 155 | 1/4 | 32.1 bar | 3/8 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 16 inch | NoMar™ Fast-Stor® Fittings | -40 °F | |
| 95UFS-64-YEL-015 | Backordered | Backordered | $56.72/each | EA | Yellow | 15 | 155 | 1/4 | 465 psi | 3/8 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 9 inch | 1/4" NPT | -40 °C | |
| 95UFS-64-YEL-025 | Backordered | Backordered | $77.59/each | EA | Yellow | 25 | 155 | 1/4 | 32.1 bar | 3/8 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 16 inch | 1/4" NPT | -40 °C | |
| 95UFS-85-TBL-010 | Backordered | Backordered | $124.23/each | EA | Blue, Transparent | 10 | 140 | 5/16 | 420 psi | 12 mm | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 5.5 inch | NoMar™ Fast-Stor® Fittings | -40 °F | |
| 95UFS-85-TBL-015 | Backordered | Backordered | $134.02/each | EA | Blue, Transparent | 15 | 140 | 5/16 | 420 psi | 15/32 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 8.5 inch | 3/8" NPT | -40 °C | |
| 95UFS-85-TBL-020 | Backordered | Backordered | $146.23/each | EA | Blue, Transparent | 20 | 140 | 5/16 | 420 psi | 15/32 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 12.5 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-85-TBL-025 | Backordered | Backordered | $151.65/each | EA | Blue, Transparent | 25 | 140 | 5/16 | 420 psi | 15/32 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 15.5 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-96-TBL-010 | Backordered | Backordered | $110.33/each | EA | Blue, Transparent | 10 | 135 | 3/8 | 405 psi | 9/16 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 180 °F | 6 inch | NoMar™ Fast-Stor® Fittings | -40 °C | |
| 95UFS-96-TBL-015 | Backordered | Backordered | $134.05/each | EA | Blue, Transparent | 15 | 135 | 3/8 | 405 psi | 9/16 inch | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. | 82 °C | 9.5 inch | 3/8" NPT | -40 °C |
