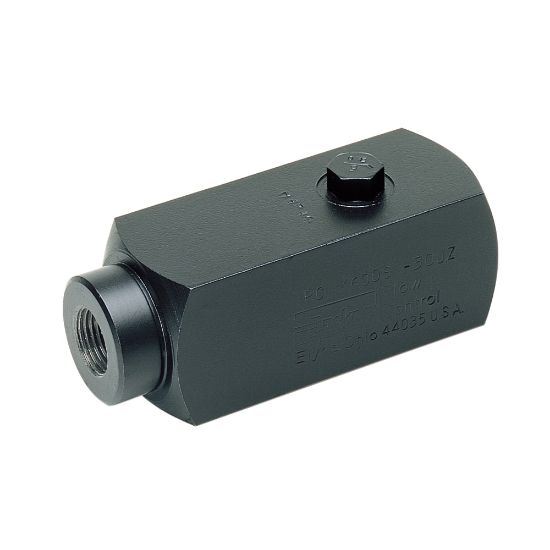

PCCK1020S-2.00 - Colorflow In-Line Pressure Compensated Valve - PC*K Series

Parker’s Colorflow PC*K series in-line hydraulic valve is a pressure compensated flow control valve that regulates flow at a selected rate within 5% regardless of fluctuations in inlet and outlet flow.

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU PCCK1020S-2.00

$472.92/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	SAE
Maximum Flow Rate	15	Connection Size	10
Maximum Operating Pressure	3000	Reverse Check	Check
Minimum Flow Rate	1.5	Flow Rate	n/a
Maximum Operating Pressure	3000 psi	Minimum Flow Rate	1.5
Connection Size	10	Reverse Check	Check
Seal Material	Nitrile	Function	Pressure Compensated Flow Control
Media	Oil	Body Material	Steel
Maximum Pressure Setting	n/a	Mounting Type	Inline
Connection Type	SAE	Configuration	Female-Female
Maximum Flow Rate	15 Gal/min	Minimum Operating Temperature	-40° °F
Maximum Operating Temperature	+250 °F	Actuation Type	Hydraulic
