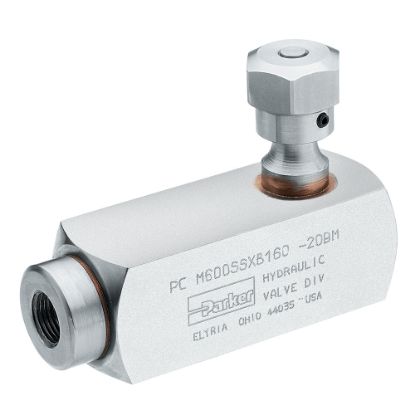

Colorflow In-Line Pressure Compensated Valve - PC*M Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s PC*M Pressure Compensated Flow Control metering valve comes with an adjustable needle providing hydraulic pressure control. The adjustable setting on the flow regulator valve can be secured with a standard set screw or a thumbscrew option that does not require additional tools. Available as steel and stainless-steel flow control valves.
Markets:
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits:
• Port options include NPT and SAE
• Available with reverse flow check
• Port sizes available in 6 sizes from ¼” to 1 ¼”
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
• Set screw locks the valve on a desired setting
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Connection Size | Connection Type | Mounting Type | Maximum Flow Rate | Maximum Operating Pressure | Minimum Operating Temperature | Mounting Type | Body Material | Maximum Operating Pressure | Seal Material | Maximum Operating Temperature | Connection Size | Connection Type | Media | Maximum Flow Rate | Actuation Type | Maximum Pressure Setting | Function | Configuration | Reverse Check | Knob Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9PCCM1200S | Backordered | Backordered | $758.52/each | EA | 3/4" | BSPP | In-line | 25 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | 250 °F | 3/4 | Female to Female | Oil | 25 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Standard Knob | |
| 9PCCM1600S | Backordered | Backordered | $1,312.08/each | EA | 1" | BSPP | In-line | 50 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | 250 °F | 1 | Female to Female | Oil | 50 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Standard Knob | |
| 9PCCM1600SF | Backordered | Backordered | $1,222.20/each | EA | 1" | BSPP | In-line | 50 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | 250 °F | 1 | Female to Female | Oil | 50 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Finger Screw | |
| 9PCCM400S | Backordered | Backordered | $417.48/each | EA | 1/4" | BSPP | In-line | 3 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1/4 inch | Female to Female | Oil | 3 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Standard Knob | |
| 9PCCM400ST | Backordered | Backordered | $472.92/each | EA | 1/4" | BSPP | In-line | 3 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1/4 inch | Female to Female | Oil | 3 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Tamperproof | |
| 9PCCM600S | Backordered | Backordered | $478.80/each | EA | 3/8" | BSPP | In-line | 6 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | 250 °F | 3/8 inch | Female to Female | Oil | 6 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Standard Knob | |
| 9PCCM800S | Backordered | Backordered | $570.36/each | EA | 1/2" | BSPP | In-line | 15 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | 250 °F | 1/2 | Female to Female | Oil | 15 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Standard Knob | |
| 9PCCM800SS | Backordered | Backordered | $824.88/each | EA | 1/2" | BSPP | In-line | 15 | 3000 PSI | -40 °F | Inline | Stainless Steel | 3000 psi | Nitrile | 250 °F | 1/2 | Female to Female | Oil | 15 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Standard Knob | |
| 9PCCM800ST | Backordered | Backordered | $648.48/each | EA | 1/2" | BSPP | In-line | 15 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | 250 °F | 1/2 | Female to Female | Oil | 15 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Check | Tamperproof | |
| 9PCM1200S | 2 Limited Stock | Backordered | $648.48/each | EA | 3/4" | BSPP | In-line | 25 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 3/4 | Female to Female | Oil | 25 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob | |
| 9PCM1600S | Backordered | Backordered | $1,196.16/each | EA | 1" | BSPP | In-line | 50 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1 | Female to Female | Oil | 50 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob | |
| 9PCM1600SF | Backordered | Backordered | $1,202.88/each | EA | 1" | BSPP | In-line | 50 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1 | Female to Female | Oil | 50 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Finger Screw | |
| 9PCM400S | Backordered | Backordered | $351.96/each | EA | 1/4" | BSPP | In-line | 3 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1/4 inch | Female to Female | Oil | 3 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob | |
| 9PCM400SF | Backordered | Backordered | $362.04/each | EA | 1/4" | BSPP | In-line | 3 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1/4 inch | Female to Female | Oil | 3 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Finger Screw | |
| 9PCM400SF-V | Backordered | Backordered | $374.64/each | EA | 1/4" | BSPP | In-line | 3 | 3000 PSI | -15 °F | Inline | Steel | 3000 psi | Fluorocarbon | 400 °F | 1/4 inch | Female to Female | Oil | 3 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Finger Screw | |
| 9PCM400S-V | Backordered | Backordered | $369.60/each | EA | 1/4" | BSPP | In-line | 3 | 3000 PSI | -15 °F | Inline | Steel | 3000 psi | Fluorocarbon | 400 °F | 1/4 inch | Female to Female | Oil | 3 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob | |
| 9PCM600S | Backordered | Backordered | $420.00/each | EA | 3/8" | BSPP | In-line | 6 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 3/8 inch | Female to Female | Oil | 6 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob | |
| 9PCM600SF | Backordered | Backordered | $428.40/each | EA | 3/8" | BSPP | In-line | 6 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 3/8 inch | Female to Female | Oil | 6 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Finger Screw | |
| 9PCM600S-V | Backordered | Backordered | $435.12/each | EA | 3/8" | BSPP | In-line | 6 | 3000 PSI | -15 °F | Inline | Steel | 3000 psi | Fluorocarbon | 400 °F | 3/8 inch | Female to Female | Oil | 6 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob | |
| 9PCM800S | Backordered | Backordered | $511.56/each | EA | 1/2" | BSPP | In-line | 15 | 3000 PSI | -40 °F | Inline | Steel | 3000 psi | Nitrile | -250 °F | 1/2 | Female to Female | Oil | 15 Gal/min | Hydraulic Pressure | n/a | Pressure Compensated Flow Control | Female to Female | Without Check | Standard Knob |
